Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

All cylinder heads

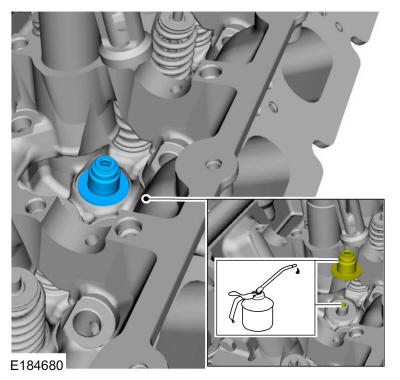

NOTE: Lubricate the new valve stem seal and valve guide bore with clean engine oil.

Install the new valve stem seal.

Material: Motorcraft® SAE 5W-50 Full Synthetic Motor Oil / XO-5W50-QGT (WSS-M2C931-C)

Courtesy of FORD MOTOR COMPANY

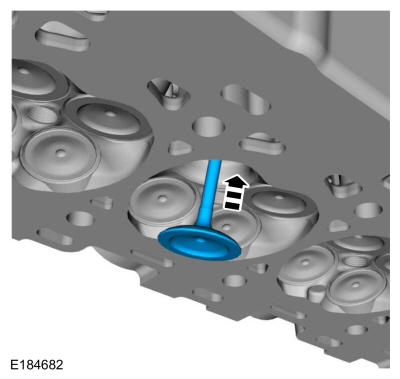

Install the valve into the cylinder head.

Courtesy of FORD MOTOR COMPANY

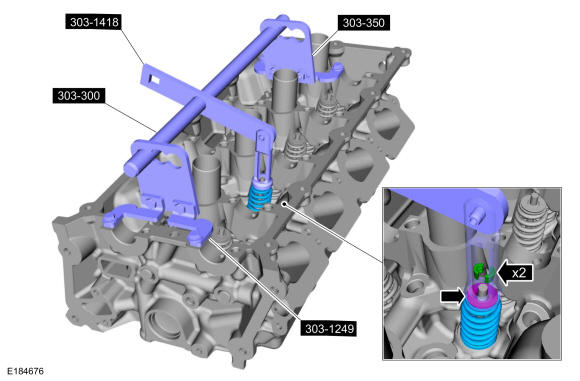

Using the special tools, install the spring, retainer and keys. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-1249 Valve Spring Compressor, 303-1418 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY
Repeat the previous steps for each of the remaining valves.

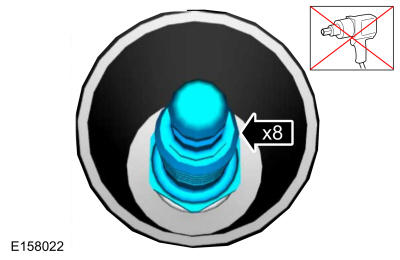

Install the spark plugs.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

RH cylinder heads

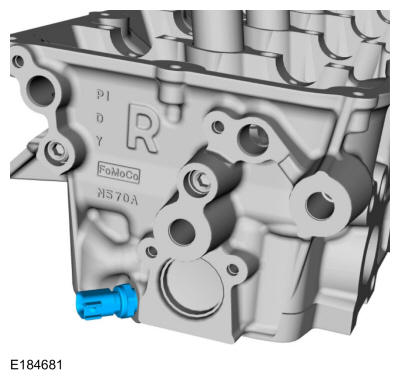

Install a new CHT sensor.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

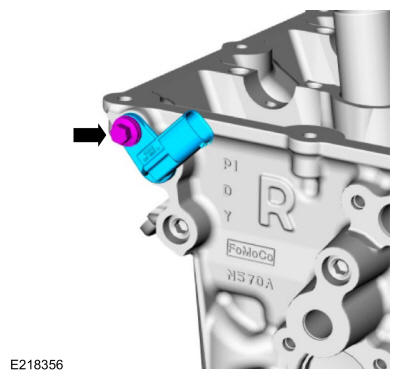

Install the CMP sensor and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the O-ring seal with clean engine coolant prior to installing.

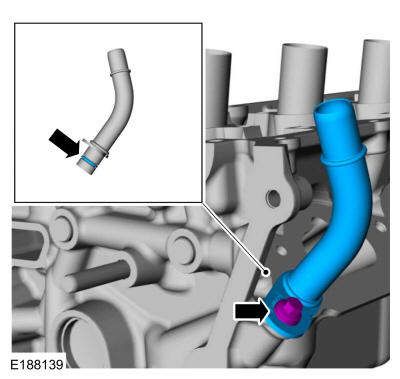

Using a new O-ring seal, install the coolant outlet pipe.

Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

LH cylinder heads
- Install the heat shield and the fasteners.
  Torque: 89 lb.in (10 Nm)

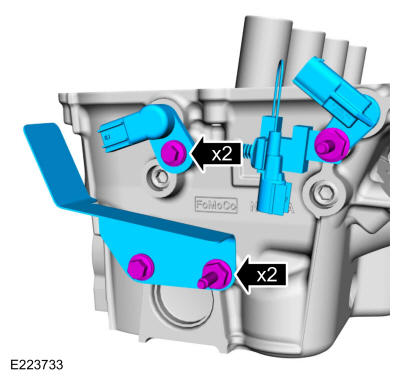

- Install the intake and exhaust CMP sensors, the radio interference capacitor and the fasteners.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

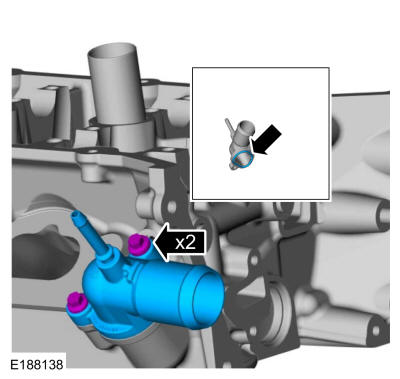

Using a new gasket, install the coolant outlet and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
