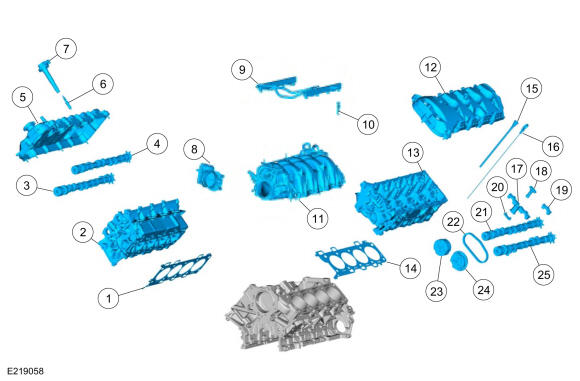

Exploded View Of Engine - Upper Components
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6051 | RH cylinder head gasket |
| 2 | 6049 | RH cylinder head |
| 3 | 6250 | RH exhaust camshaft |
| 4 | 6250 | RH intake camshaft |
| 5 | 6582 | RH valve cover |
| 6 | 12405 | Spark plug (8 required) |
| 7 | 12029 | Ignition coil on plug (8 required) |
| 8 | 9F991 | Throttle body |
| 9 | 9F792 | Fuel rail |
| 10 | 9F593 | Fuel injector (8 required) |
| 11 | 9424 | Intake manifold |
| 12 | 6582 | LH valve cover |
| 13 | 6049 | LH cylinder head |
| 14 | 6051 | LH cylinder head gasket |
| 15 | 6754 | Oil indicator tube |
| 16 | 6750 | Oil indicator |
| 17 | -- | Camshaft bearing cap (part of 6049) (2 required) |
| 18 | 6K254 | Secondary tensioner (2 required) |
| 19 | -- | Camshaft bearing cap (part of 6049) (16 required) |
| 20 | 6K297 | Secondary tensioner shoe (2 required) |
| 21 | 6250 | LH intake camshaft |
| 22 | 6268 | Secondary timing chain (2 required) |
| 23 | 6256 | Intake camshaft Variable Camshaft Timing (VCT) (2 required) |
| 24 | 6256 | Exhaust camshaft Variable Camshaft Timing (VCT) (2 required) |
| 25 | 6250 | LH exhaust camshaft |
