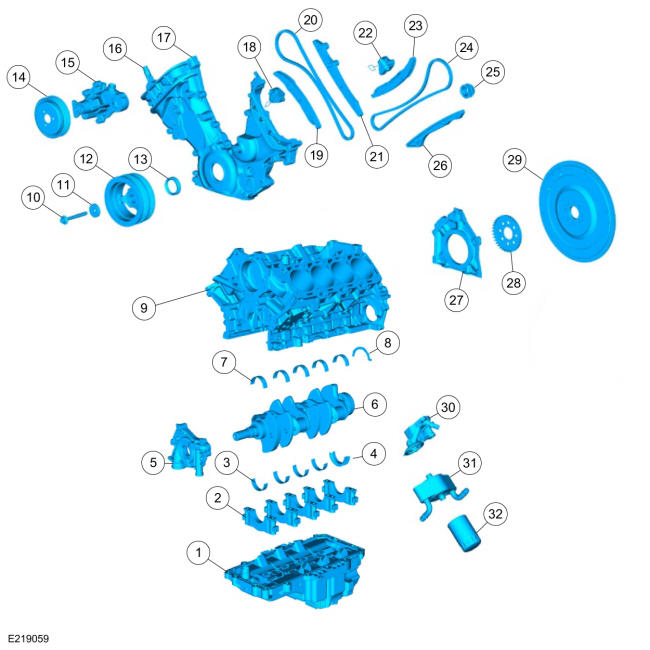

Exploded View Of Engine - Lower Components

WARNING: This page is about a different variant/trim than selected.

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6675	Oil pan
2	--	Crankshaft main bearing cap (part of 6010) (5 required)
3	6A338	Crankshaft lower main bearing (4 required)
4	6A339	Crankshaft lower thrust main bearing
5	6600	Oil pump
6	6303	Crankshaft
7	6333	Crankshaft upper main bearing (5 required)
8	6A341	Thrust washer
9	6010	Cylinder block
10	6A340	Crankshaft pulley bolt
11	N807033	Crankshaft pulley washer
12	6316	Crankshaft pulley
13	6700	Crankshaft front oil seal
14	8509	Coolant pump pulley
15	8501	Coolant pump
16	6B297	Variable Camshaft Timing (VCT) variable force solenoid (4 required)
17	6019	Engine front cover
18	6L266	RH primary timing chain tensioner
19	6K255	RH timing chain tensioner arm
20	6268	RH primary timing chain
21	6M256	RH timing chain guide
22	6L266	LH primary timing chain tensioner
23	6K255	LH timing chain tensioner arm
24	6268	LH primary timing chain
25	6306	Crankshaft sprocket
26	6B274	LH timing chain guide
27	6K318	Crankshaft rear seal retainer plate
28	12A227	Crankshaft sensor ring
29	6375	Flywheel (manual transmission)
30	6881	Oil filter adapter
31	6A642	Oil cooler
32	6731	Oil filter
