Engine Identification
WARNING: This page is about a different variant/trim than selected.
Always refer to these labels when installation of new parts is necessary or when checking engine calibrations. The engine parts often differ within a CID family. Verification of the identification codes will make sure the correct parts are obtained. The codes contain all the pertinent information relating to the dates, optional equipment and revisions.

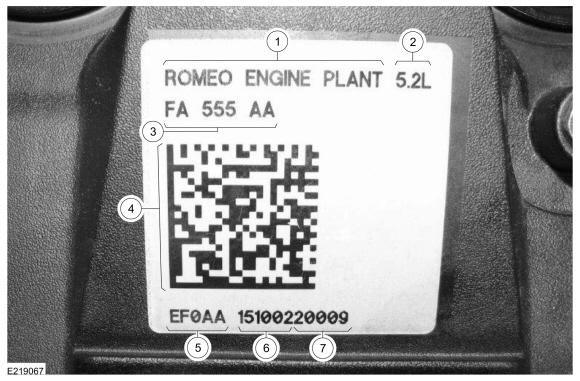

Engine Code Information Label
| Item | Description |
|---|---|
| 1 | Engine plant |
| 2 | Engine displacement |
| 3 | Engine part number |
| 4 | Bar code |
| 5 | Engine plant code |
| 6 | Engine build date (YYDDMM) |
| 7 | Sequential number |

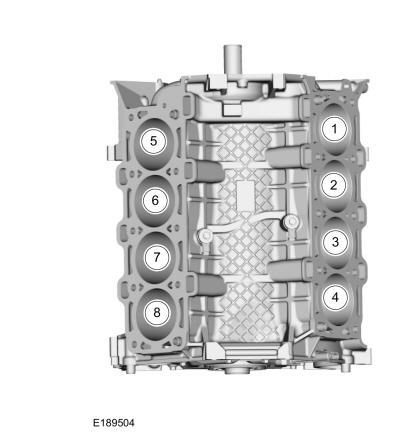

Engine Cylinder Identification
