Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

- Position the intake manifold for installation.
- Attach the KS electrical connector retainers to the intake manifold.
- Connect the PCV tube quick release coupling.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the coolant tube is in position when intake is installed.

Position the intake manifold on the coolant tube stud.

Courtesy of FORD MOTOR COMPANY
Install the bolts.
Torque: 177 lb.in (20 Nm)

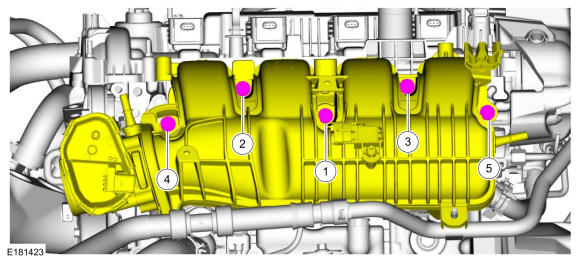

Fig 1: Intake Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY

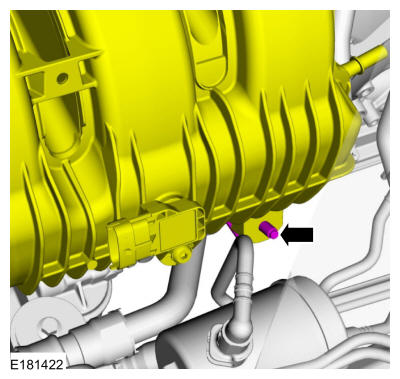

Install the nut on the coolant tube.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the vacuum tube quick release coupling at the rear of the intake manifold.

Courtesy of FORD MOTOR COMPANY
Position the CAC outlet tube and tighten the clamp.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the throttle body electrical connector and the wire harness retainer.

Courtesy of FORD MOTOR COMPANY
Connect the MAPT sensor electrical connector and the wire harness retainers.

Courtesy of FORD MOTOR COMPANY
- Install the EVAP canister purge valve and the bolt.
  Torque: 71 lb.in (8 Nm)
- Connect the EVAP canister purge valve electrical connector.
- Attach the fuel tube and EVAP tube to the retainer on the intake manifold.
- Connect the EVAP canister purge valve quick release coupling at the front of the intake manifold.
Courtesy of FORD MOTOR COMPANY
Install the engine appearance cover and the nuts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
