Removal And Installation: Flexplate: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the automatic transmission. Refer to: Transmission - 2.3L EcoBoost (231kW/314PS) .
-

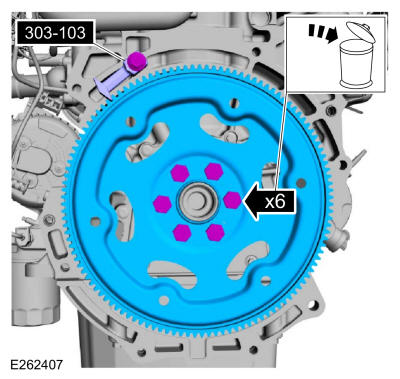

- Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
-
NOTE: Do not reuse the flexplate bolts.
Remove the bolts and the flexplate.
- Discard the bolts.
