Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the nuts and the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Install the special tool on the LH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
NOTE: Coolant tube removed for clarity.

Install the special tool on the RH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the battery cover.

Courtesy of FORD MOTOR COMPANY

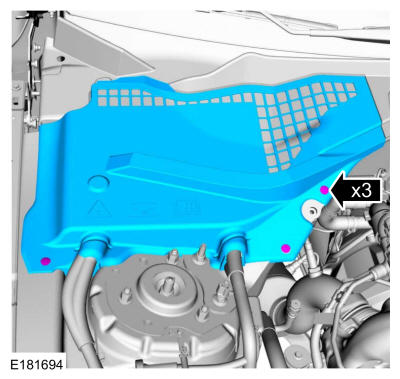

Remove the retainers and the radiator top shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Both the engine mount nuts must be removed to allow the engine to be raised.

Remove the RH and LH engine mount nuts.

Courtesy of FORD MOTOR COMPANY

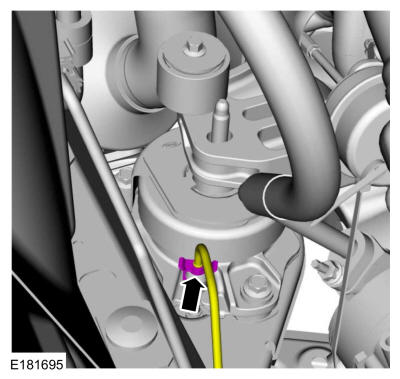

Disconnect the vacuum tube from the RH engine mount.

Courtesy of FORD MOTOR COMPANY

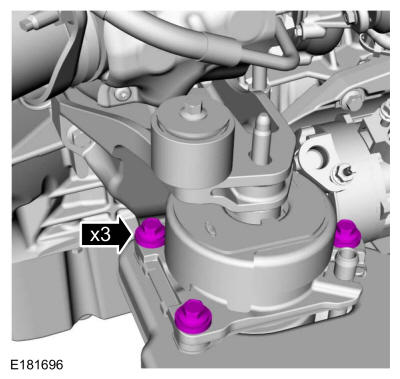

Remove the bolts for the engine mount.

Courtesy of FORD MOTOR COMPANY
Install the special tool and raise the engine 26 mm (1.0 in). Use Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

10-Speed Automatic Transmission - 10R80

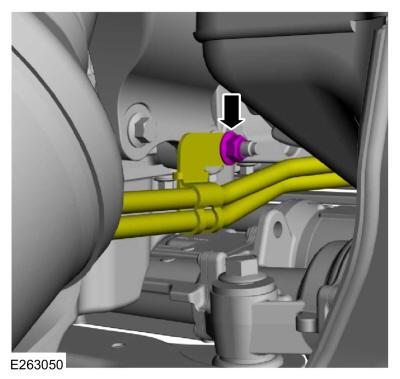

Remove the nut from the engine mount bracket stud bolt and position the automatic transmission tube bracket aside.

Courtesy of FORD MOTOR COMPANY

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

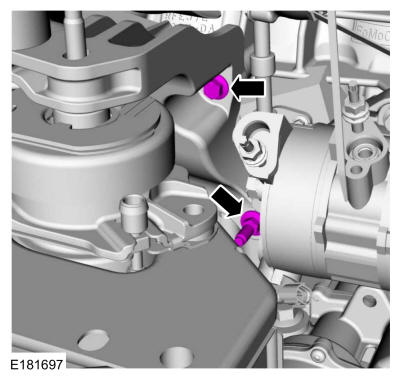

Remove the bolt, stud bolt for the engine mount bracket.

Courtesy of FORD MOTOR COMPANY

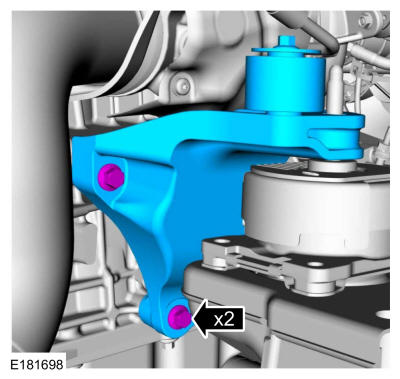

Remove the bolts and the engine mount bracket.

Courtesy of FORD MOTOR COMPANY

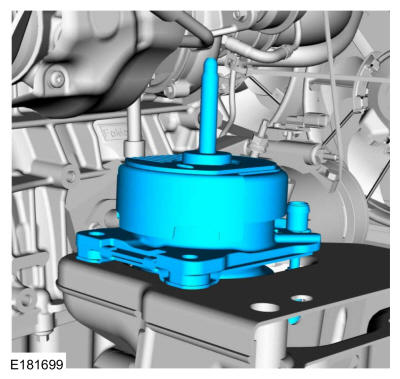

Remove the engine mount.
