Engine Mount RH: Installation

WARNING: This page is about a different variant/trim than selected.

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

NOTE: Do not install the engine mount bolts at this time.

Install the engine mount.

Courtesy of FORD MOTOR COMPANY

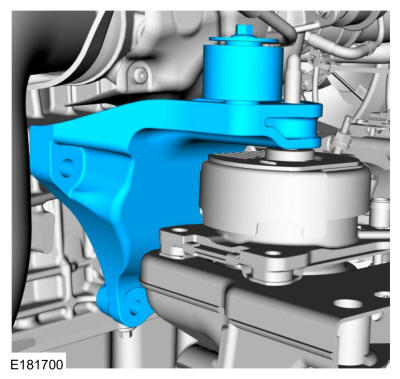

NOTE: Do not install the engine mount bracket bolts at this time.

Install the engine mount bracket.

Courtesy of FORD MOTOR COMPANY

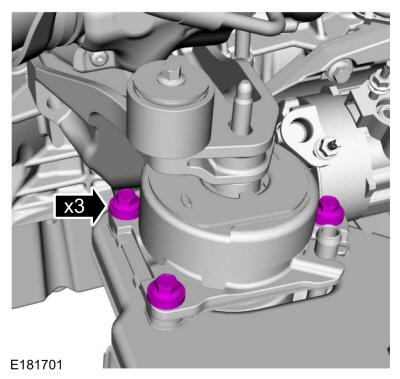

Install the engine mount bolts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

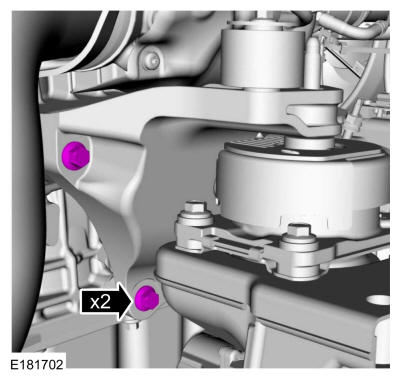

Install the bolts for the engine mount bracket finger tight.

Courtesy of FORD MOTOR COMPANY

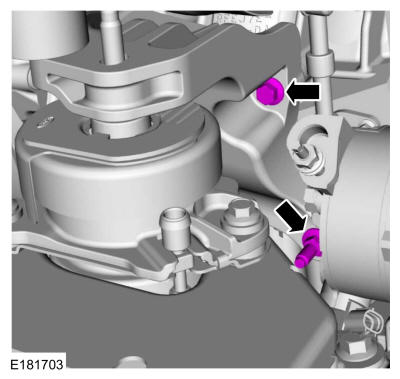

Install the bolt, stud bolt for the engine mount bracket.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the bolts for the engine mount bracket.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

10-Speed Automatic Transmission - 10R80
Position the automatic transmission tube bracket and install the nut.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80
Lower the engine 26 mm (1.0 in) and remove the special tool. Remove Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Connect the vacuum tube to the RH engine mount.

Courtesy of FORD MOTOR COMPANY
Install the RH and LH engine mount nuts.
Torque: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY
Install the radiator top shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the battery cover and the retainers.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Install the engine appearance cover and the nuts.
Torque: 80 lb.in (9 Nm)
