Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

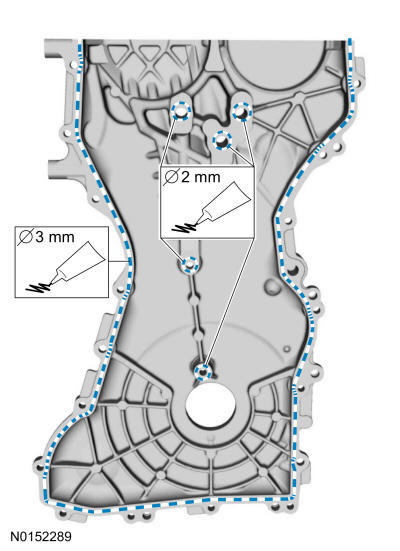

- Apply beads of silicone sealant that are 2 mm (0.078 in) around the inner bolt holes.
  Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Apply a bead of silicone sealant that are 3 mm (0.00 in) on the edge of the engine front cover.
  Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover must be secured within 10 minutes of silicone sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

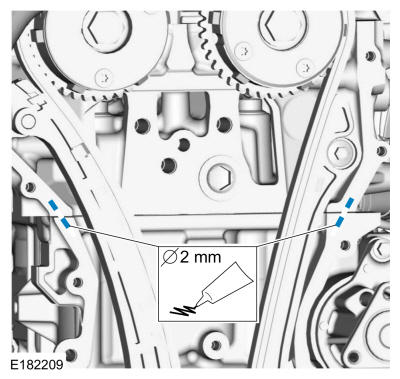

Apply beads of silicone gasket and sealant that are 2 mm (0.078 in) in diameter and 5 mm (0.19 in) in length across the cylinder head and cylinder block joint areas.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

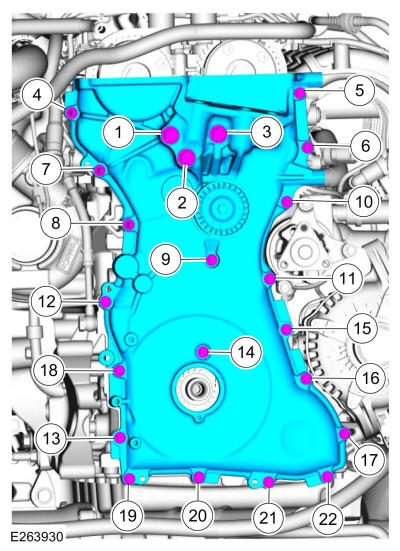

Install the engine front cover and the bolts in sequence shown.
Torque: Bolts 1 - 3: 35 lb.ft (48 Nm) Bolts 4 - 22: 89 lb.in (10 Nm)

Fig 1: Engine Front Cover Tightening Sequence
Courtesy of FORD MOTOR COMPANY

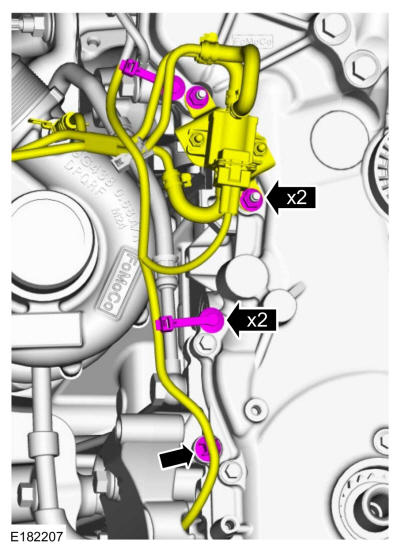

- Position the vacuum valve and install the nuts.
  Torque: 89 lb.in (10 Nm)
- Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

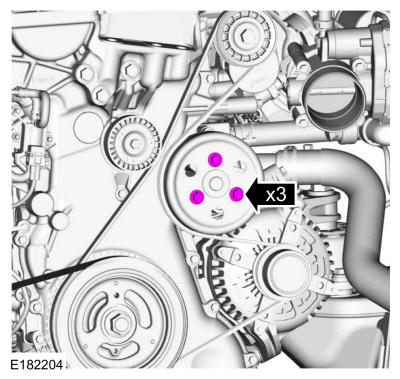

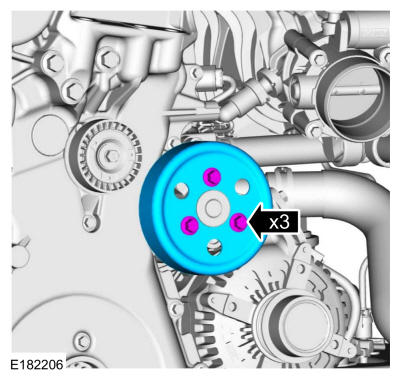

Finger-tight. Install the coolant pump pulley and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY

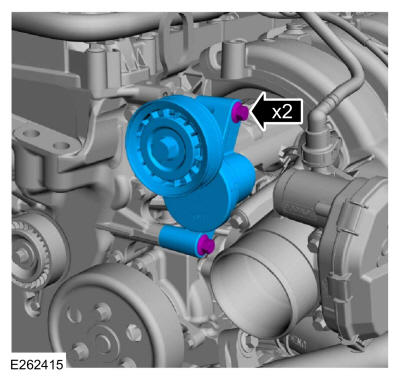

Install the accessory drive belt tensioner and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

NOTE: Lubricate the crankshaft front seal with clean engine oil.

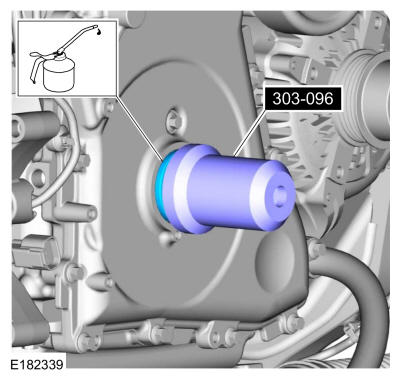

Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the crankshaft with clean engine oil.

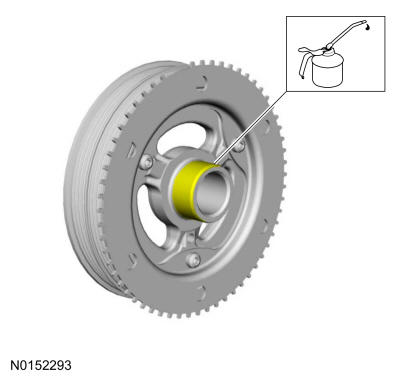

Lubricate the crankshaft pulley with clean engine oil.

Courtesy of FORD MOTOR COMPANY

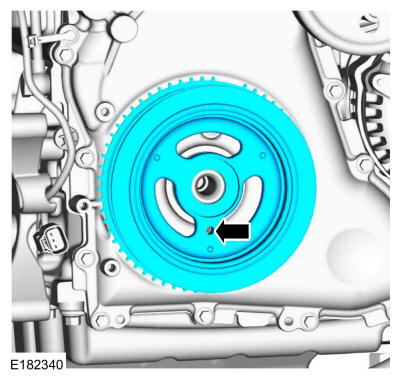

Position the crankshaft pulley onto the crankshaft with the access hole at the 6 o'clock position.

Courtesy of FORD MOTOR COMPANY
NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

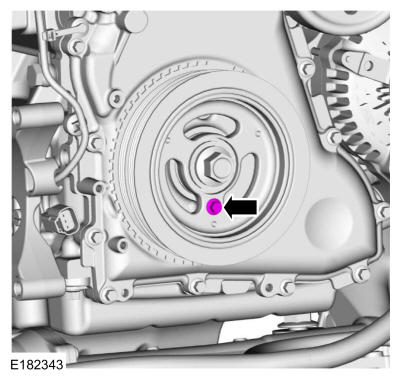

Install. Install an M6 bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be installed using hand tools only.

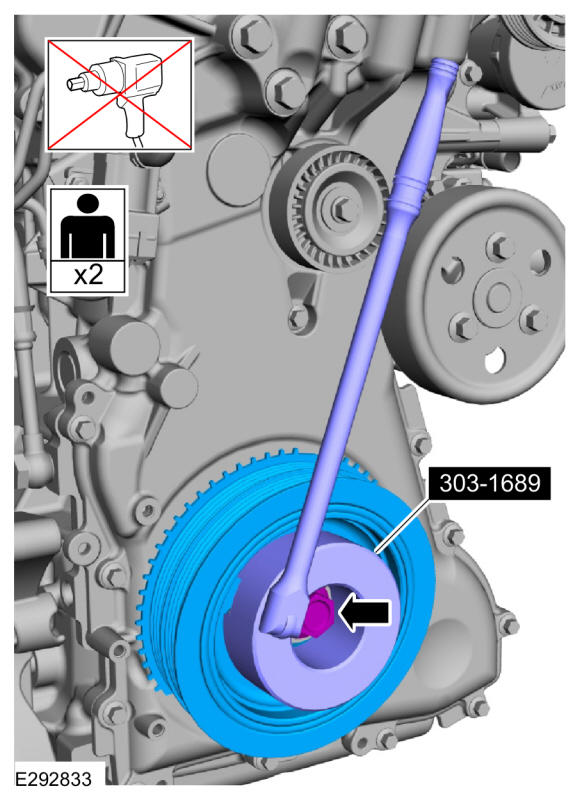

Using the special tool, install the new crankshaft bolt and washer and tighten. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

Torque: Stage 1: 74 lb.ft (100 Nm) Stage 2: 180°

Courtesy of FORD MOTOR COMPANY

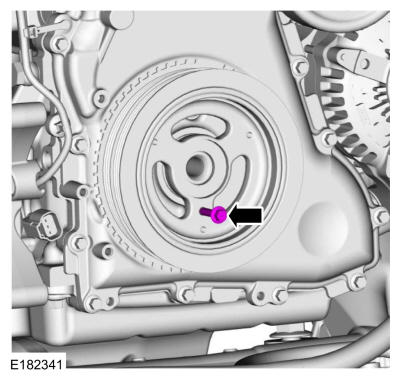

Remove. Remove the M6 bolt.

Courtesy of FORD MOTOR COMPANY
- Connect the CKP sensor electrical connector.
- NOTE: Do not tighten the CKP sensor bolts at this time.

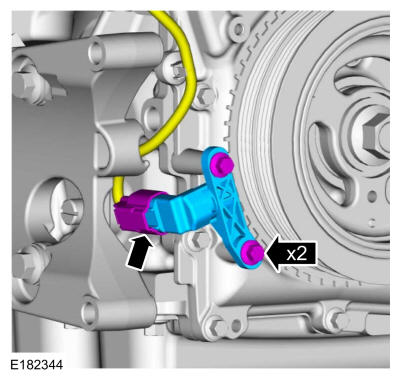

  Install the CKP sensor and the bolts finger tight.
Courtesy of FORD MOTOR COMPANY

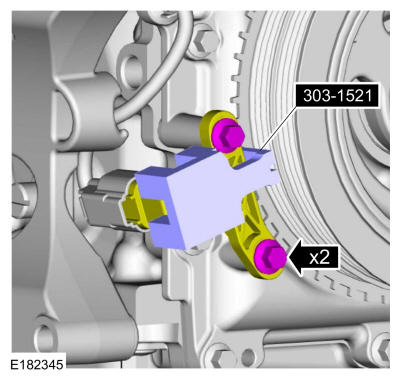

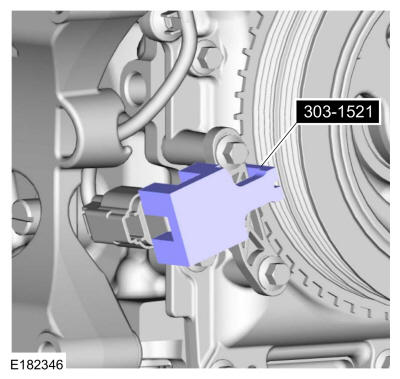

- Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
- Tighten the bolts.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

Courtesy of FORD MOTOR COMPANY

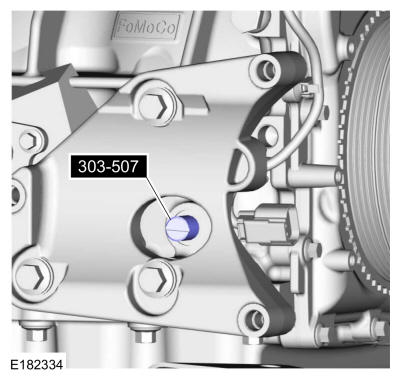

Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY

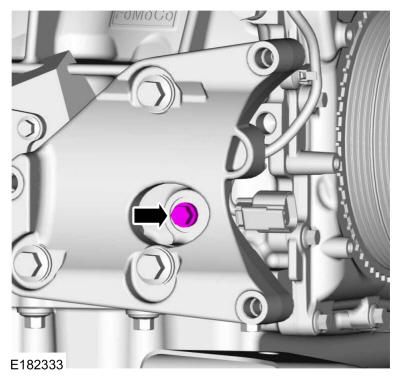

Install the engine plug bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

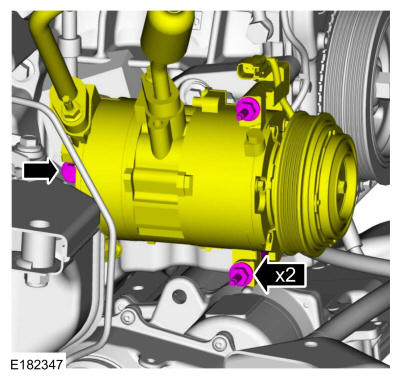

Position the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

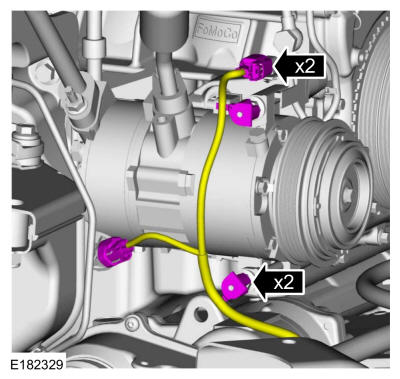

Connect the A/C compressor electrical connectors and the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

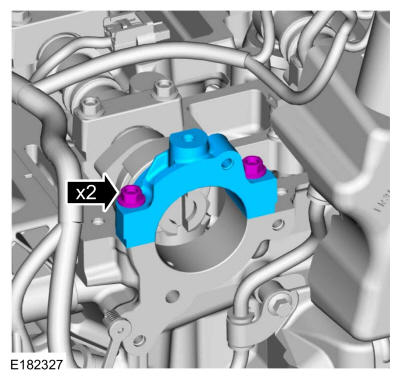

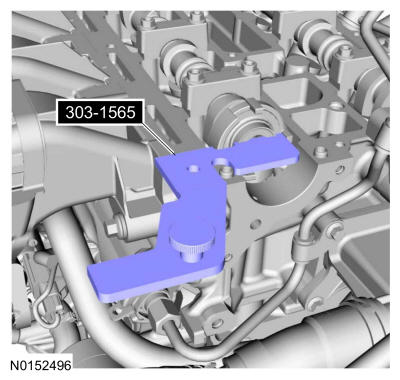

Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY

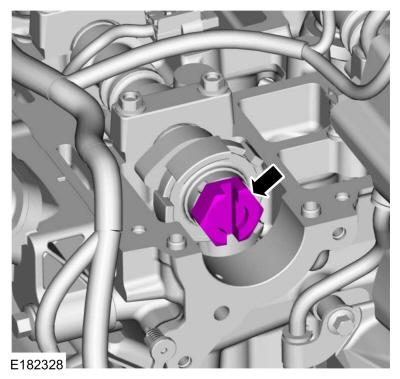

Using a wrench on the flats of the intake camshaft to prevent cam rotation, install the brake vacuum pump adapter.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The intake camshaft rear bearing cap must be secured within 10 minutes of gasket maker application. If the bearing cap is not secured within 10 minutes, the gasket maker must be removed.

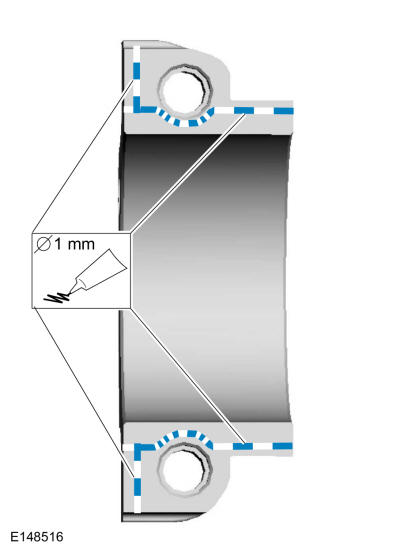

Apply 1 mm (0.039 in) beads of gasket maker to the intake rear camshaft bearing cap mating surface as shown.

Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY
NOTE: Wipe off any excess gasket maker from the vacuum pump sealing surface of the cylinder head and camshaft cap.

Install the rear intake camshaft cap and the bolts.

Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Brake Vacuum Pump - 2.3L EcoBoost (231kW/314PS) .
2. Refer to: Valve Cover .
3. Refer to: Accessory Drive Belt .
Tighten the coolant pump pulley bolts.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

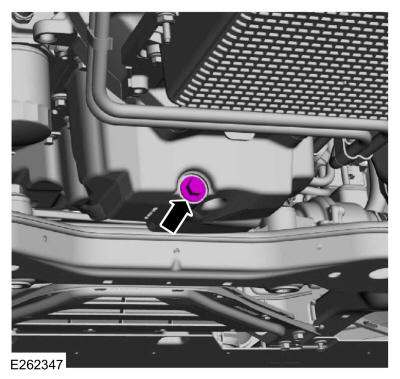

Drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment
Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

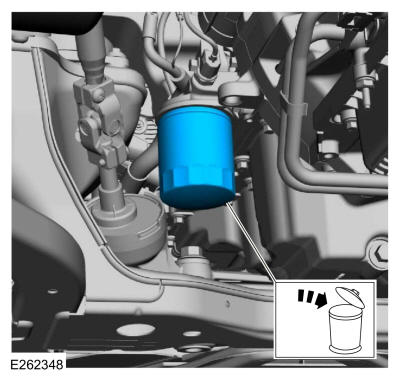

Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the engine oil filter seal with clean engine oil.

Install a new engine oil filter.

Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
