Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

NOTE: Lubricate the crankshaft front seal with clean engine oil.

Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the crankshaft with clean engine oil.

Lubricate the crankshaft pulley with clean engine oil.

Courtesy of FORD MOTOR COMPANY
Position the crankshaft pulley onto the crankshaft with the access hole at the 6 o'clock position.

Courtesy of FORD MOTOR COMPANY
NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

Install an M6 bolt.

Courtesy of FORD MOTOR COMPANY

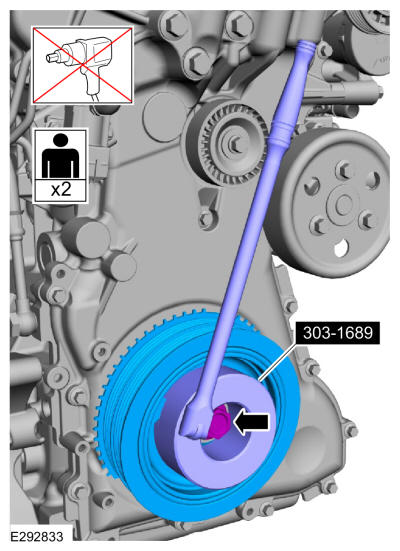

NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be installed using hand tools only.

Using the special tool, install the new crankshaft bolt and washer and tighten. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

Torque: Stage 1: 74 lb.ft (100 Nm) Stage 2: 180°

Courtesy of FORD MOTOR COMPANY
Remove. Remove the M6 bolt.

Courtesy of FORD MOTOR COMPANY
- Connect the CKP sensor electrical connector.
- NOTE: Do not tighten the CKP sensor bolts at this time.

  Install the CKP sensor and the bolts finger tight.
Courtesy of FORD MOTOR COMPANY
- Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
- Tighten the bolts.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Install the engine plug bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Position the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the A/C compressor electrical connectors and the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

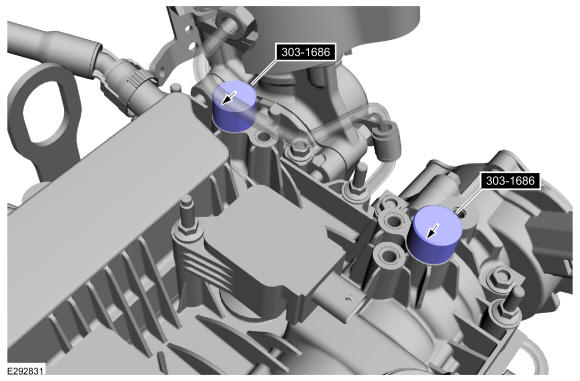

Remove Special Service Tool: 303-1686 Holding Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. RH and LH CMP sensors. Refer to: Camshaft Position (CMP) Sensor .
2. Install the accessory drive belt. Refer to: Accessory Drive Belt .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
