Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

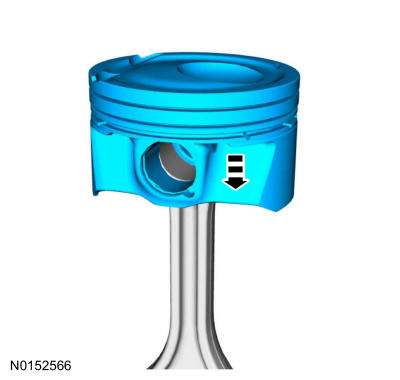

Install the piston to the connecting rod.

Courtesy of FORD MOTOR COMPANY

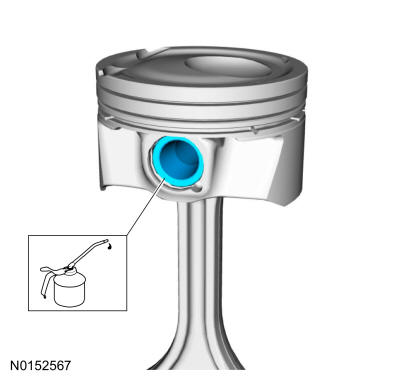

Lubricate with clean engine oil and install the piston pin.

Courtesy of FORD MOTOR COMPANY
Install the piston pin retainers.

Courtesy of FORD MOTOR COMPANY

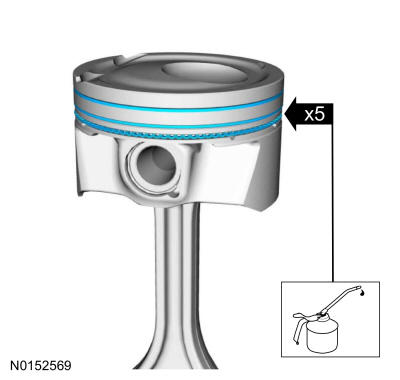

Lubricate with clean engine oil and install the piston rings.

Courtesy of FORD MOTOR COMPANY

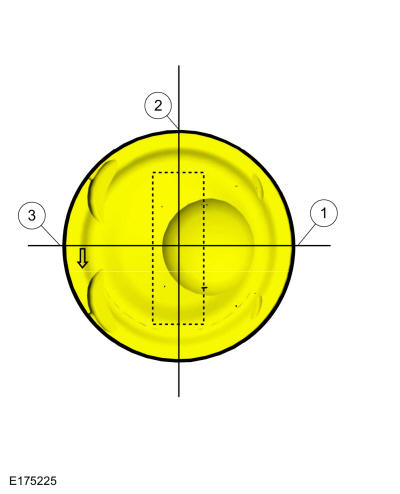

NOTE: Align the piston rings on the piston.
1. Upper oil control segment ring gap location.
2. Oil control spacer gap location.
3. Lower oil control segment ring gap location.

Courtesy of FORD MOTOR COMPANY
