Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

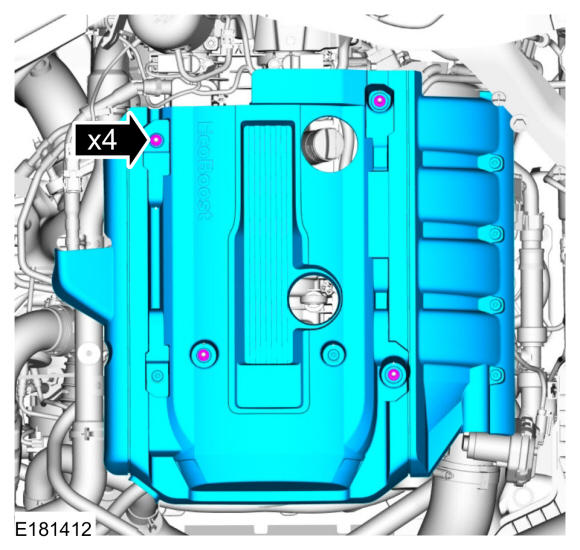

- Remove the nuts and the engine appearance cover.
Torque
: 80 lb.in (9 Nm)
 Courtesy of FORD MOTOR COMPANY
|
-

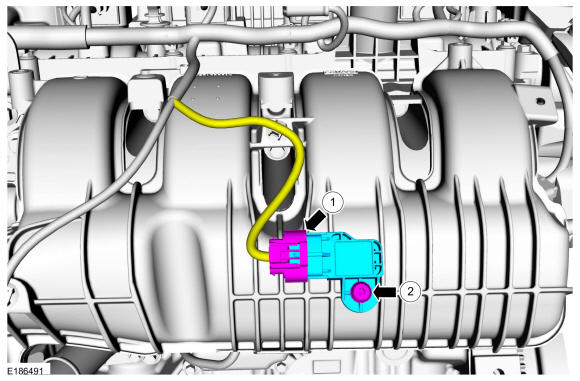

- Disconnect the MAPT sensor electrical connector.
- Remove the retainer and the MAPT sensor.
Torque
: 44 lb.in (5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
