Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

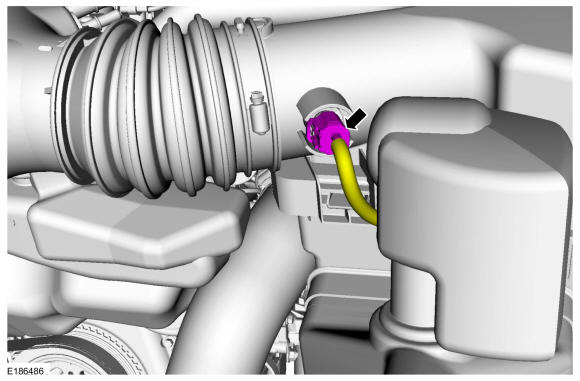

  1. Disconnect the IAT sensor electrical connector.
    GFD287255Courtesy of FORD MOTOR COMPANY

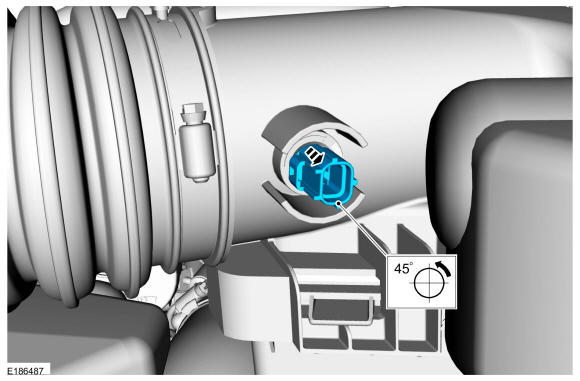

  2. Remove the IAT sensor.
GFD287256Courtesy of FORD MOTOR COMPANY
