Fuel Pressure Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .

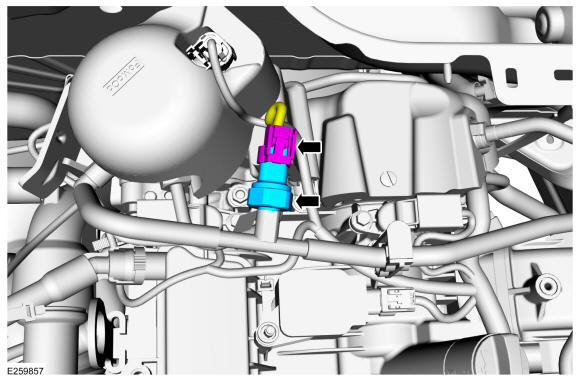

  2. Disconnect the fuel pressure sensor electrical connector and remove the fuel pressure sensor.

    Torque

    : 22 lb.ft (30 Nm)

GFD287265Courtesy of FORD MOTOR COMPANY
