Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Have the new component ready to install to reduce coolant loss.

NOTE: Be prepared to capture escaping fluid with a shop towel.

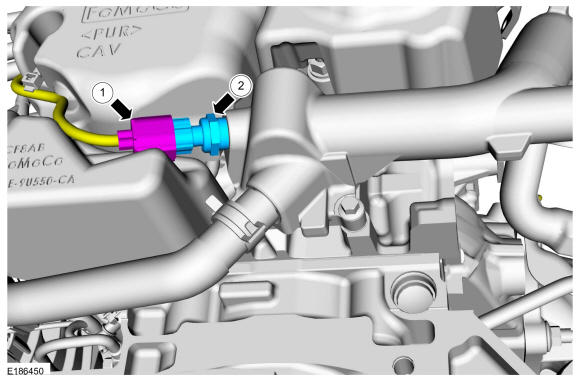

1. Disconnect the ECT sensor electrical connector.
2. Remove the ECT sensor.
  Torque

  :Stage 1: 142 lb.in (16 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
