Cylinder Head Temperature 2 (CHT2) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the nuts and the engine appearance cover.
Torque
: 80 lb.in (9 Nm)
 Courtesy of FORD MOTOR COMPANY
|
-

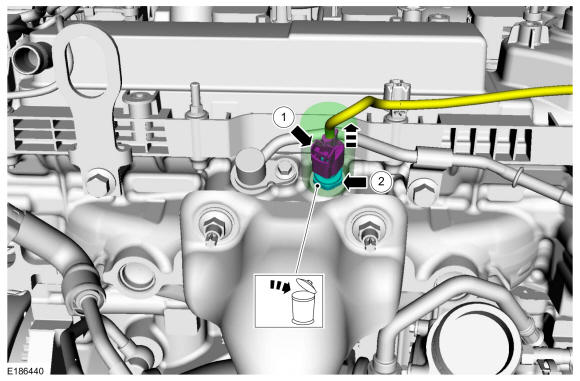

- Slide the insulator up and disconnect the CHT sensor electrical connector.
- Remove and discard the CHT sensor.
Torque
: 97 lb.in (11 Nm)
 Courtesy of FORD MOTOR COMPANY
|
