Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the nuts and the engine appearance cover.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

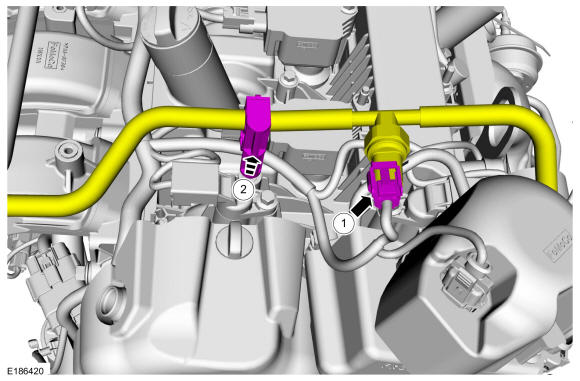

1. Disconnect the low pressure fuel sensor electrical connector.
2. Detach the fuel supply tube retainer from the valve cover stud bolt.
Courtesy of FORD MOTOR COMPANY
NOTE: Before installation, lubricate the CMP sensor O-ring seal with clean engine oil.

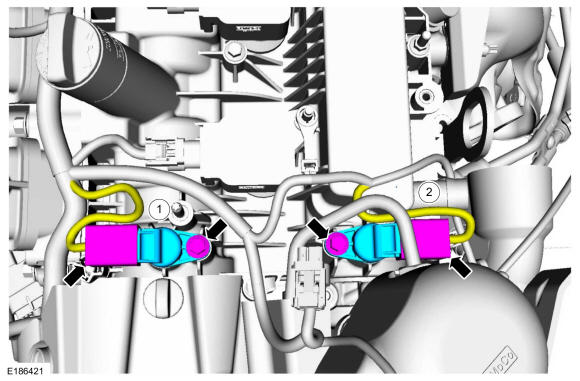

1. Disconnect the CMP sensor electrical connectors and remove the retainer and the intake CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

  Torque

  : 89 lb.in (10 Nm)
2. Disconnect the CMP sensor electrical connectors and remove the retainer and the exhaust CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

  Torque

  : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
