Battery Cables - 3.5L Duratec (212kW/278PS): Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

NOTE: AWD vehicle with auxiliary water pump shown, vehicles without AWD and auxiliary coolant pump similar.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

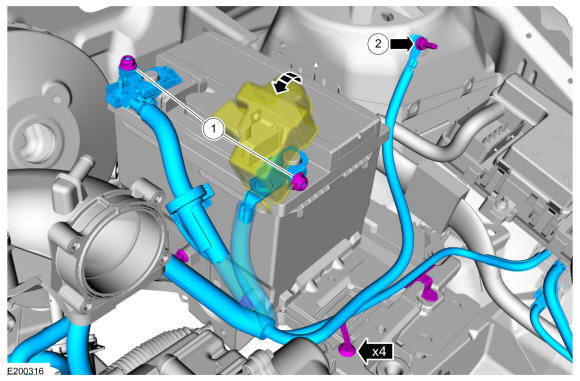

1. Torque: 44 lb.in (5 Nm)
2. Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

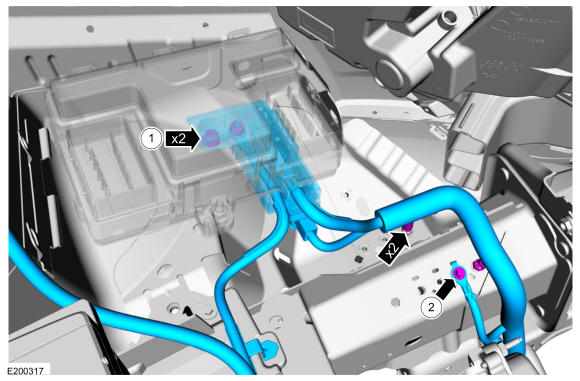

1. Torque: 133 lb.in (15 Nm)
2. Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

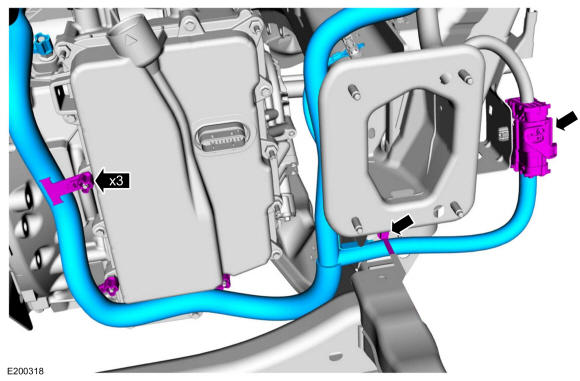

Courtesy of FORD MOTOR COMPANY

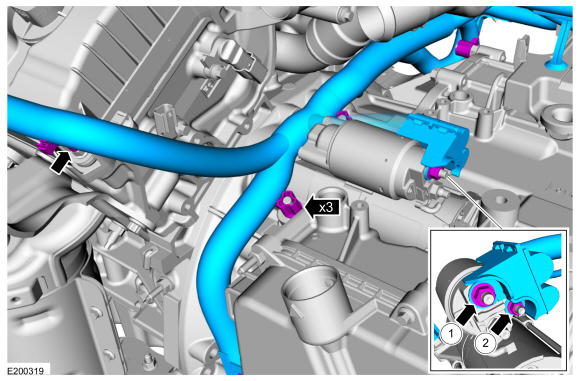

1. Torque: 106 lb.in (12 Nm)
2. Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

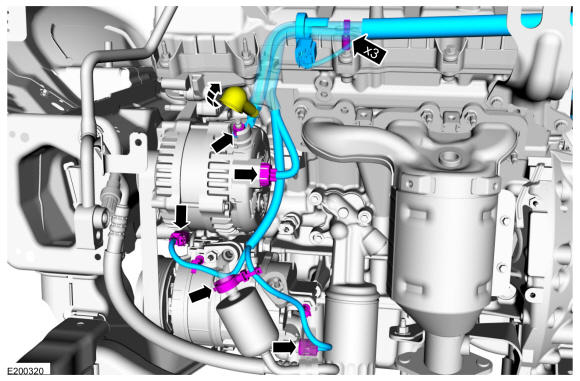

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

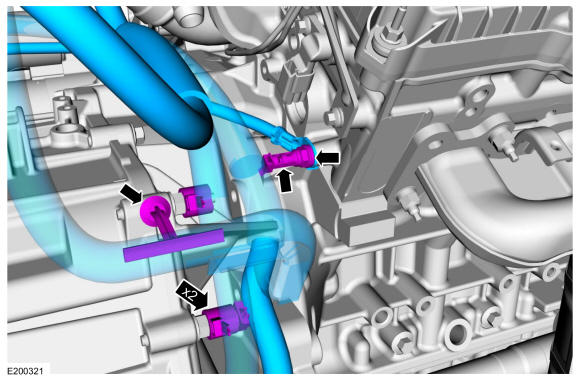

1. Vehicles with auxiliary coolant pump.
2. AWD vehicles.

Courtesy of FORD MOTOR COMPANY
