Battery Cables - 2.7L EcoBoost (238kW/324PS): Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.
NOTE:
AWD vehicle with auxiliary water pump shown, vehicles without AWD and auxiliary coolant pump similar.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

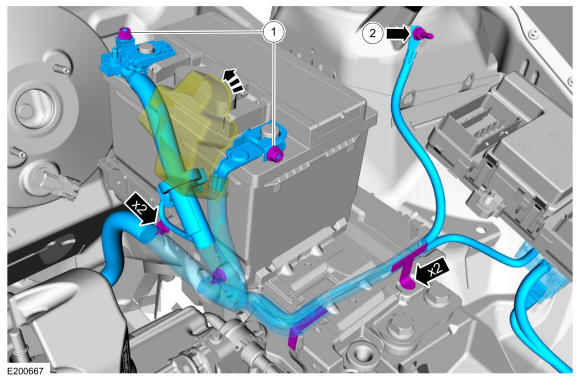

- Disconnect the battery. Refer to: Battery Disconnect and Connect .
-

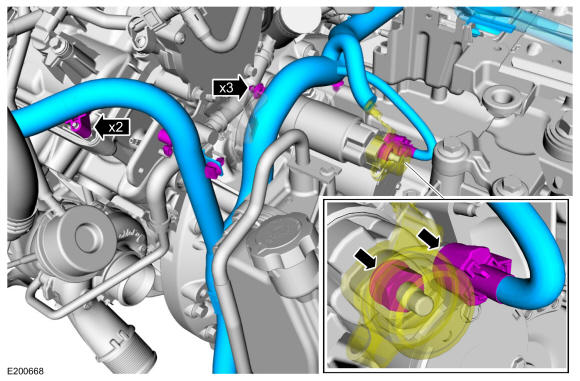

- Torque: 44 lb.in (5 Nm)

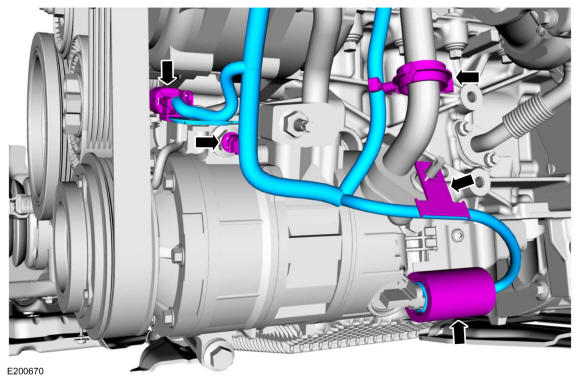

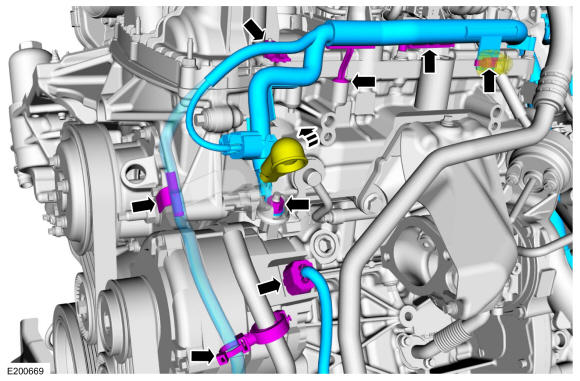

- Torque: 106 lb.in (12 Nm)
-

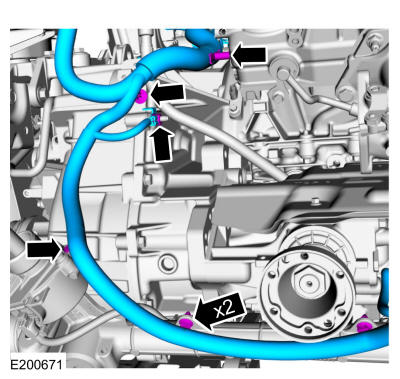

- Torque: 133 lb.in (15 Nm)
- Torque: 89 lb.in (10 Nm)
- Torque: 106 lb.in (12 Nm)
- Torque: 150 lb.in (17 Nm)
- Torque: 133 lb.in (15 Nm)

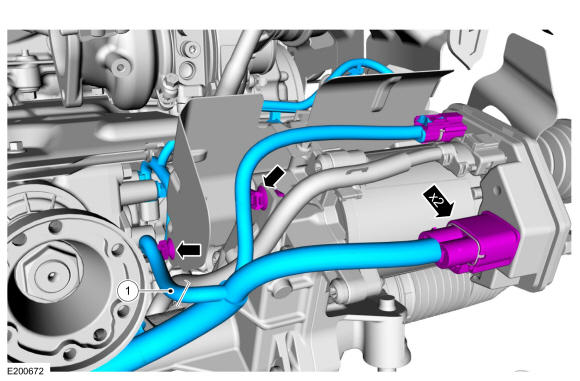

- AWD vehicles and vehicles with auxiliary coolant pump.
-
- Vehicles with auxiliary coolant pump.
