Battery Cables - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

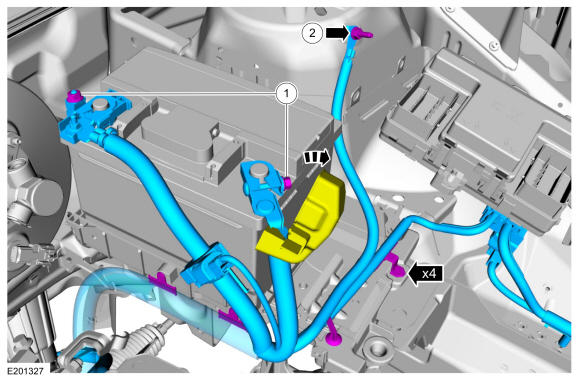

Vehicles without auto-start-stop system
1. Torque: 44 lb.in (5 Nm)
2. Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

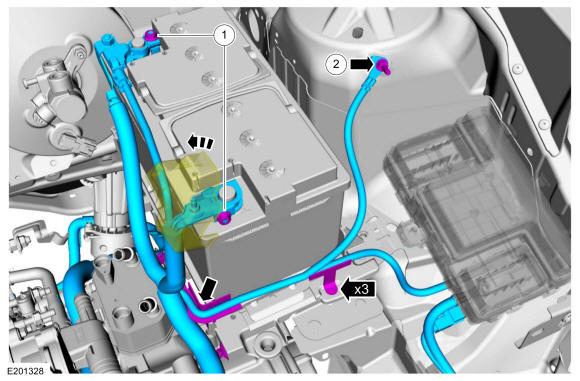

Vehicles with auto-start-stop system
1. Torque: 44 lb.in (5 Nm)
2. Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles

NOTE: Vehicle with auto-start-stop system shown, vehicle without auto-start-stop system similar.
1. Torque: 133 lb.in (15 Nm)
2. Torque: 89 lb.in (10 Nm)
3. Vehicles with auto-start-stop system
Courtesy of FORD MOTOR COMPANY
1. Torque: 106 lb.in (12 Nm)
2. Torque: 53 lb.in (6 Nm)
3. Torque: 150 lb.in (17 Nm)
4. Vehicles with auto-start-stop system
Courtesy of FORD MOTOR COMPANY

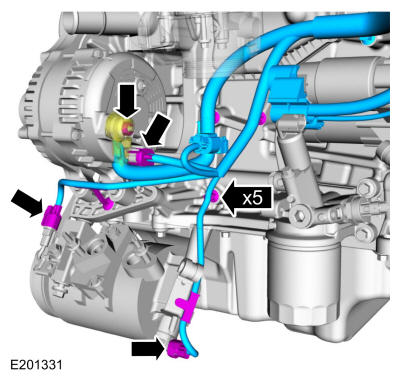

Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
