System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

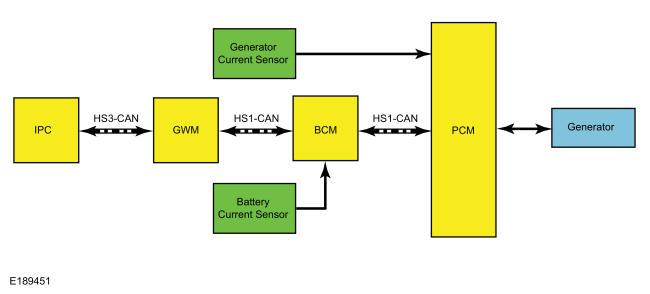

 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
PCM |
| 2 |
GWM |
| 3 |
IPC |
| 4 |
Generator |
| 5 |
Generator Current Sensor |
| 6 |
BCM |
| 7 |
Battery Current Sensor (without Auto-start-stop), Battery Monitoring Sensor (with Auto-start-stop), |
