Rear Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

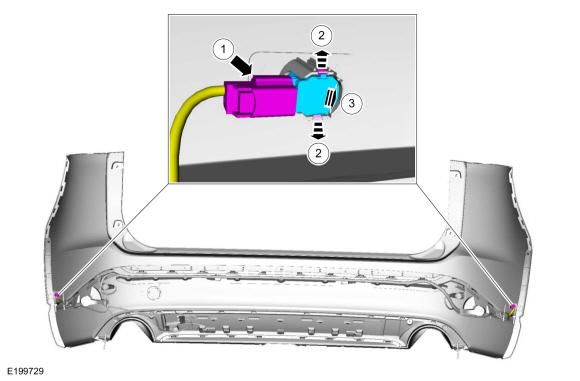

  2. Remove the rear active park assist sensor.

    1. Disconnect the rear active park assist electrical connector.
    2. Release the retaining tabs.
    3. Remove the rear active park assist sensor.

GFD282584Courtesy of FORD MOTOR COMPANY
