Front Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This procedure can be used for all locations of the component.

Remove the front wheel and tire assemblies. Refer to: Wheel and Tire .

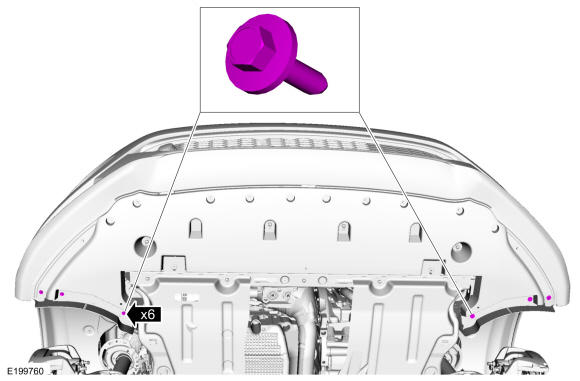

Remove the fender liner to radiator closeout screws.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

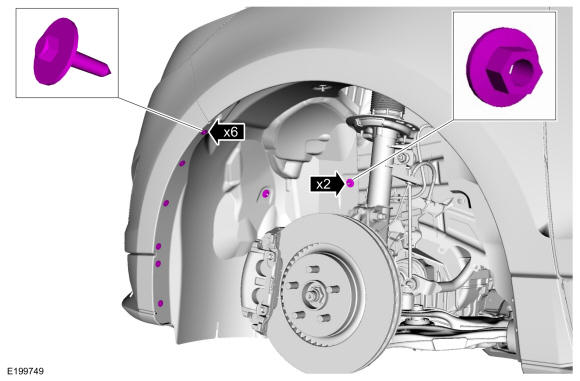

On both sides. Remove the screws and nuts from the front of the fender liner.
Torque: Fender liner screws: 13 lb.in (1.5 Nm) Fender liner nuts: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

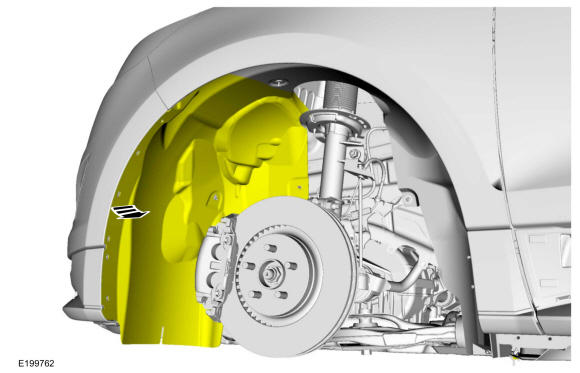

Position the fender liner aside.

Courtesy of FORD MOTOR COMPANY

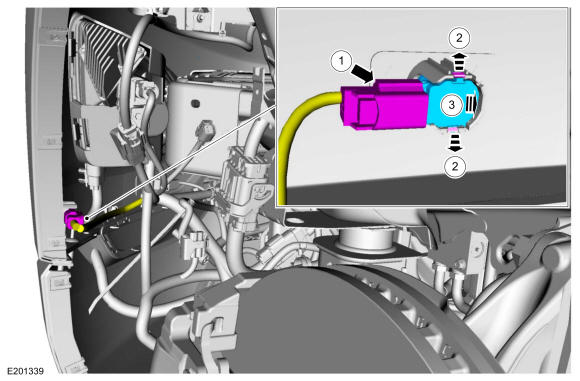

Remove the front active park assist sensor.
1. Disconnect the front active park assist electrical connector.
2. Release the retaining tabs.
3. Remove the front active park assist sensor.

Courtesy of FORD MOTOR COMPANY
