System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

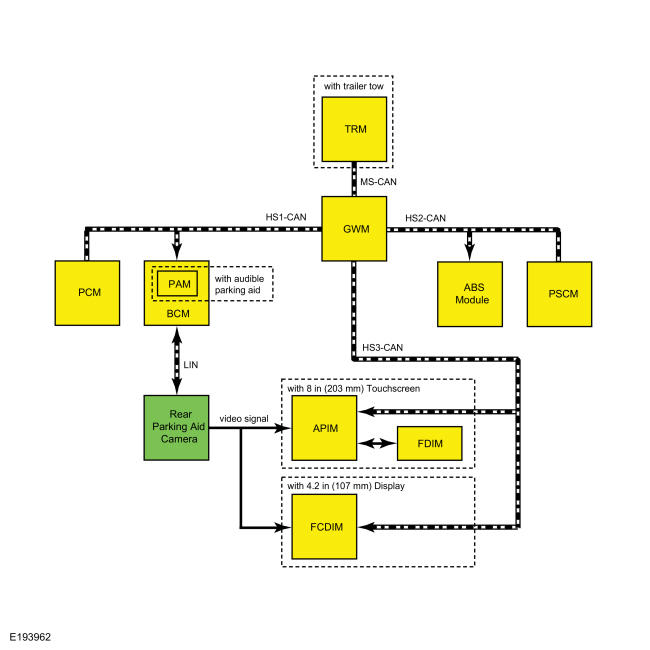

 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

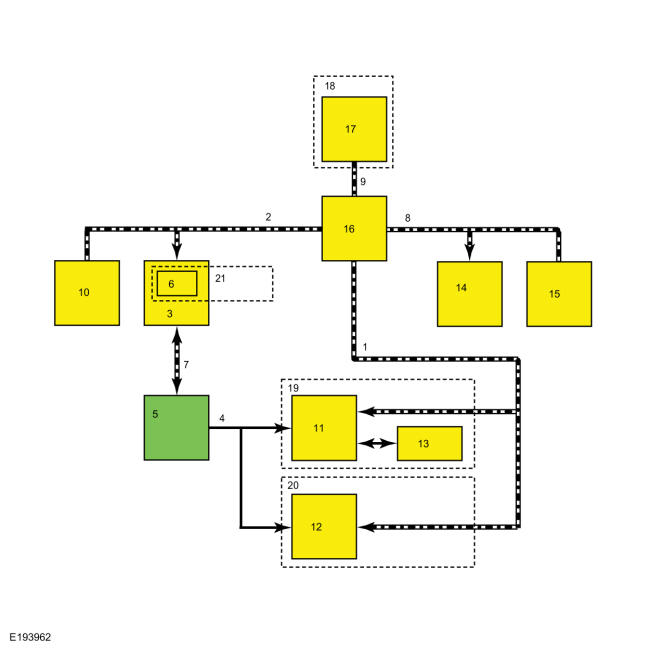

| Item |
Description |
| 1 |
HS-CAN3 |
| 2 |
HS-CAN1 |
| 3 |
BCM |
| 4 |
Video signal |
| 5 |
Rear parking aid camera |
| 6 |
PAM |
| 7 |
LIN |
| 8 |
HS-CAN2 |
| 9 |
MS-CAN |
| 10 |
PCM |
| 11 |
APIM |
| 12 |
FCDIM |
| 13 |
FDIM |
| 14 |
ABS Module |
| 15 |
PSCM |
| 16 |
GWM |
| 17 |
TRM |
| 18 |
With trailer tow |
| 19 |
With 8 in (203 mm) touchscreen |
| 20 |
With 4.2 in (107 mm) display |
| 21 |
With audible parking aid |
