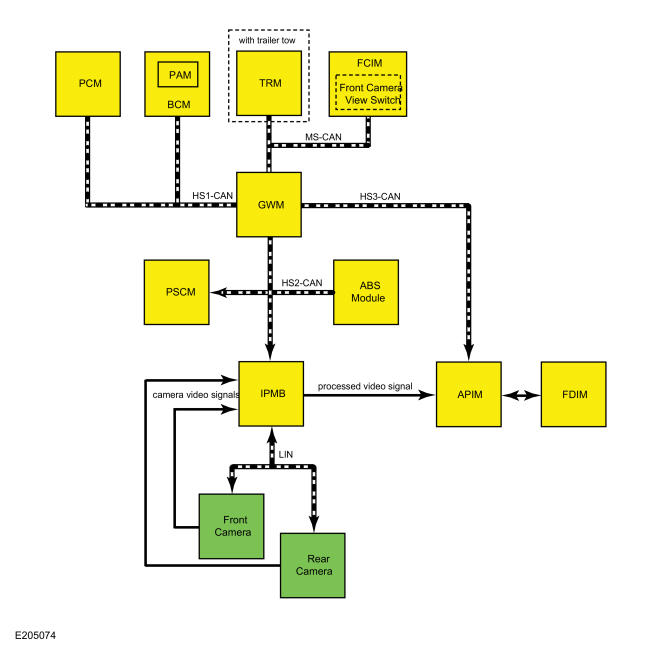

System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

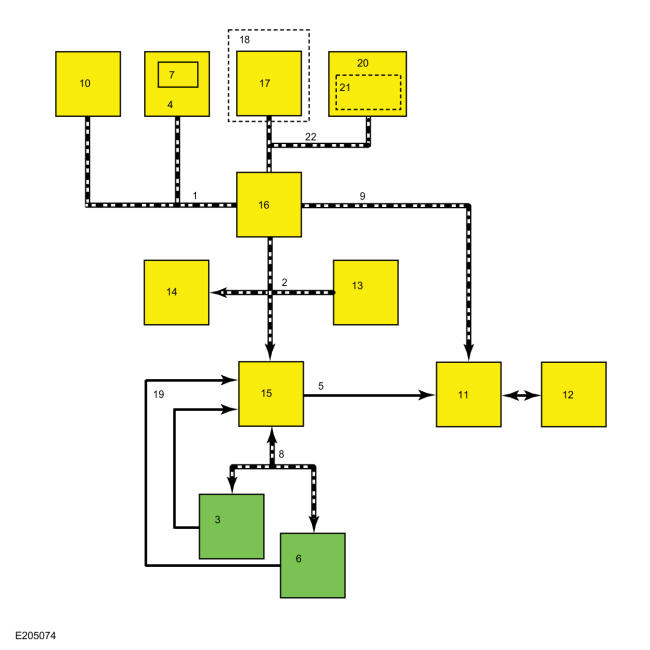

| Item |
Description |
| 1 |
HS-CAN1 |
| 2 |
HS-CAN2 |
| 3 |
Front camera |
| 4 |
BCM |
| 5 |
processed video signal |
| 6 |
Rear camera |
| 7 |
PAM |
| 8 |
LIN |
| 9 |
HS-CAN3 |
| 10 |
PCM |
| 11 |
APIM |
| 12 |
FDIM |
| 13 |
ABS Module |
| 14 |
PSCM |
| 15 |
IPMB |
| 16 |
GWM |
| 17 |
TRM |
| 18 |
with trailer tow |
| 19 |
camera video signals |
| 20 |
FCIM |
| 21 |
Front camera view switch |
| 22 |
MS-CAN |
