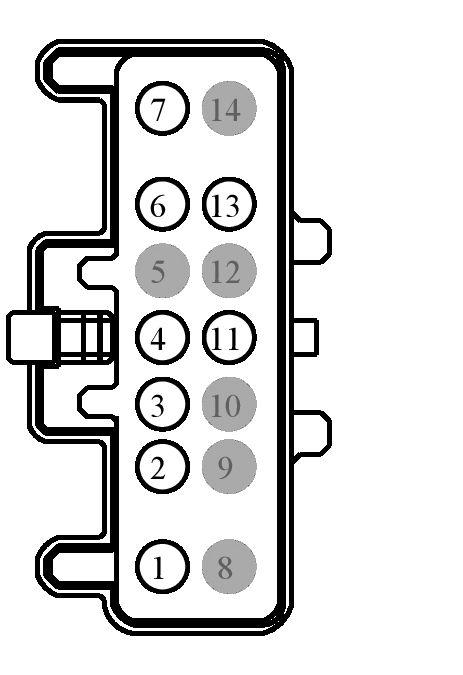

Connector End View (C921) - ROOF OPENING PANEL MOTOR ASSEMBLIES
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C921 |
ROOF OPENING PANEL MOTOR ASSEMBLIES |
GN |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| DU5T-14421-EA |
EU2Z-14421-CA |
1.5 |
| AU5T-14421-DA |
EU2Z-14421-CA |
1.5 |
| 97BG-14421-BCA |
EU2Z-14421-EA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP27 (BU-RD) |
12 |
FUSE - 27 OR CIRCUIT BREAKER |
97BG-14421-BCA |
| 2 |
CPR31 (VT) |
26 |
SWITCH - MOON/SUN ROOF OPEN |
DU5T-14421-EA |
| 3 |
CPR38 (WH) |
26 |
SWITCH - MOON/SUN ROOF TILT |
DU5T-14421-EA |
| 4 |
CPR40 (YE) |
26 |
SWITCH - MOON/SUN ROOF CLOSE |
DU5T-14421-EA |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
CBP23 (BN-YE) |
22 |
FUSE - 23 OR CIRCUIT BREAKER |
AU5T-14421-DA |
| 7 |
GD382 (BK-GY) |
12 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
97BG-14421-BCA |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
CPR86 (GY) |
26 |
SWITCH - SHADE MOON/SUN ROOF OPEN |
DU5T-14421-EA |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CPR85 (GN) |
26 |
SWITCH - SHADE MOON/SUN ROOF CLOSE |
DU5T-14421-EA |
| 14 |
* |
* |
Not Used |
N/A |
