Connector End View (C914) - RAIN SENSOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C914 | RAIN SENSOR | BK | 17C712/18D695 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB45 (YE) | * | SWITCH - REAR WIPER | N/A | ||||
| 2 | VDN05 (YE-GY) | * | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | N/A | ||||
| 3 | GD233 (BK) | * | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | N/A | ||||

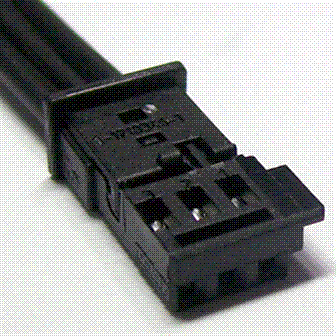

Available Pigtail Kits
Pigtail Kit Part Number WPT-1096
Service Part Number:
AU2Z-14S411-ZA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses:
- Sensor - Rain
