Connector End View (C913) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C913 | INLINE | BK | 14A00517C712 | See Below | ||||

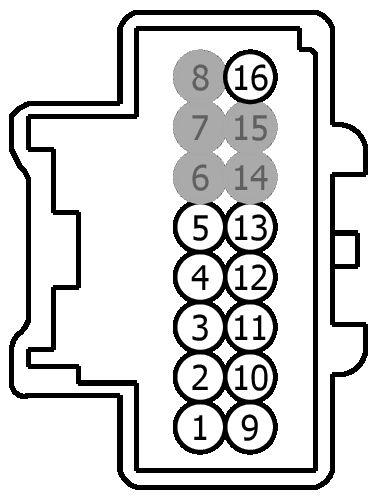

MALE
Harness
14A005

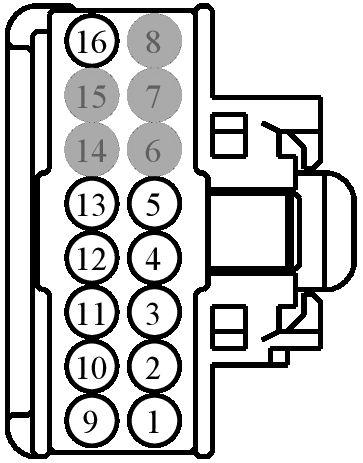

FEMALE
Harness
17C712
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CBP36 (BU-BN) | 20 | 14A005 | |
| 1 | CBP36 (BU-BN) | 22 | 17C712 | |
| 2 | CRW13 (GN) | 20 | 14A005 | |
| 2 | CRW13 (GN) | 22 | 17C712 | |
| 3 | VDN05 (YE) | 26 | 14A005 | |
| 3 | VDN05 (YE-GY) | 22 | 17C712 | |
| 4 | VDB25 (GN-OG) | 22 | ||
| 5 | VDB26 (GY-BU) | 22 | ||
| 6 | * | * | ||
| 7 | * | * | ||
| 8 | * | * | ||
| 9 | CLS28 (BU-WH) | 22 | ||
| 10 | LRD12 (BU-GY) | 22 | ||
| 11 | RRD12 (BN) | 22 | ||
| 12 | VME99 (VT-OG) | 22 | ||
| 13 | RME99 (YE-GY) | 22 | ||
| 14 | * | * | ||
| 15 | * | * | ||
| 16 | GD383 (BK-WH) | 18 | 14A005 |
Available Pigtail Kits

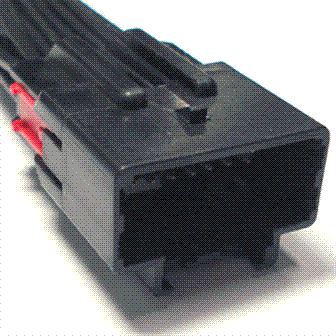

Pigtail Kit Part Number WPT-997
Service Part Number:
3U2Z-14S411-DHAB
Gauge:
18
Pin material:
Tin (greased)
Cavities:
16
Vehicle Uses:
- Mirror - Rearview
- Mirror - Sideview

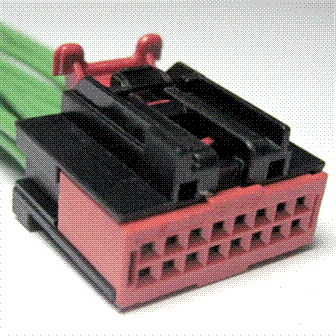

Pigtail Kit Part Number WPT-1152
Service Part Number:
3U2Z-14S411-AJD
Gauge:
18
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Mirror - Sideview
- Mirror - Vanity
- Overhead Console -Inline (Female)
- Switch - Multifunction
