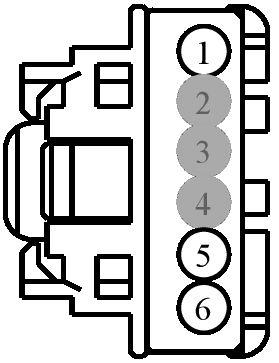

Connector End View (C901) - SECOND ROW INTERIOR LAMP
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C901 | SECOND ROW INTERIOR LAMP | BK | 14335 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | 9U5T-14474-LA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | GD382 (BK-GY) | 22 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | 9U5T-14474-LA | ||||
| 6 | CLN70 (BN-VT) | 22 | SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1 | 9U5T-14474-LA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1249
Service Part Number:
3U2Z-14S411-BYAC
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Lamp - Dome
- Lamp - Storage Compartment - Cargo
- Motor - Heater A/C Mode Door
- Motor - Heater/AC Blend Door
- Motor - Heater/AC Inlet Door
- Switch - Hazard Warning
- Switch - Heated Seat
- Switch - Heater A/C Blower (Rear)
- Switch - Speed Control
