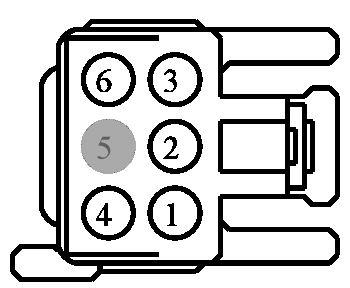

Connector End View (C837) - REAR DOOR LOCK INDICATOR RH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C837 | REAR DOOR LOCK INDICATOR RH | LT GY | 14632 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-DA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VDN13 (BN) | 22 | CTRL MOD. - LIN BUS # BCM 5 | AU5T-14474-DA | ||||
| 2 | CPL70 (WH-BN) | 22 | SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK | AU5T-14474-DA | ||||
| 3 | CBX07 (GN-RD) | 22 | POWER - CTRL MOD. AMBIENT LIGHTING | AU5T-14474-DA | ||||
| 4 | GD383 (BK-WH) | 20 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | AU5T-14474-DA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CPL89 (BN-BU) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | AU5T-14474-DA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-962
Service Part Number:
3U2Z- 14S411-JBB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Mating Connector WPT-1299
- Switch - Gear Shift Select/Neutral Safety
- Switch - Overdrive Cancel
- Switch - Power Sliding Door
