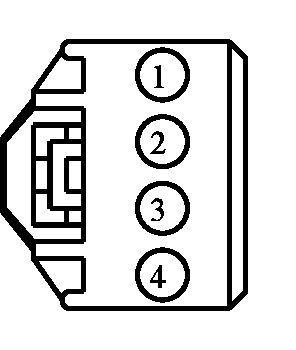

Connector End View (C702) - REAR DOOR SPEAKER LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C702 | REAR DOOR SPEAKER LH | NA | 14633 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BAA | DU2Z-14474-EA | 2.8 |
| 97BG-14474-BBA | DU2Z-14474-EA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VME09 (WH-GN) | 18 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER + | 97BG-14474-BBA | ||||
| 2 | VME39 (GN-BN) | 20 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR TWEETER + | 97BG-14474-BAA | ||||
| 3 | RME39 (GY-BN) | 20 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR TWEETER - | 97BG-14474-BAA | ||||
| 4 | RME09 (BN-YE) | 18 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER - | 97BG-14474-BBA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-912
Service Part Number:
8U2Z-14S411-HA
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Sensor - Oil Temperature
- Sensor - Power Steering Pressure
- Sensor - Purge Flow
- Switch - Gear Shift Select/Neutral Safety
