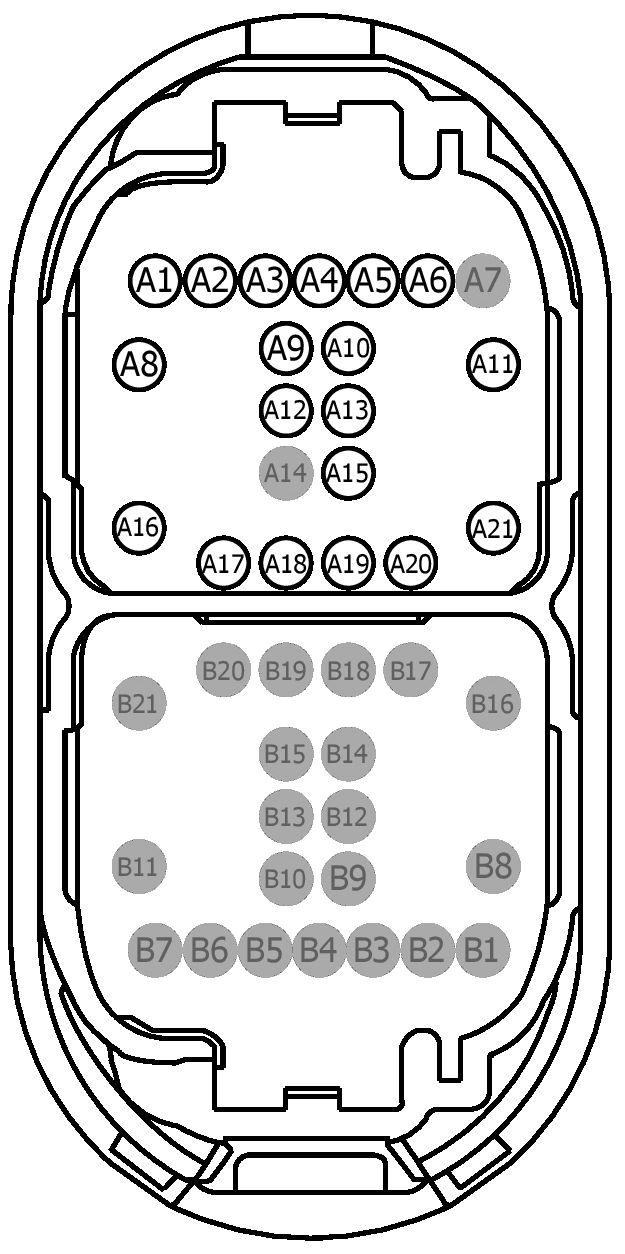

Connector End View (C655) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C655 | INLINE | 1463014A005 | See Below | |||||
MALE
Harness
14630
FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| A1 | CPL31 (WH) | 22 | ||
| A2 | CBX07 (GN-RD) | 22 | ||
| A3 | VDB06 (GY-OG) | 22 | 14630 | |
| A3 | VDB06 (GY-OG) | 26 | 14A005 | |
| A4 | VDB07 (VT-OG) | 22 | 14630 | |
| A4 | VDB07 (VT-OG) | 26 | 14A005 | |
| A5 | RPK39 (VT-OG) | 22 | ||
| A6 | VPK40 (WH-OG) | 22 | ||
| A7 | * | * | ||
| A8 | CPL13 (BN-GN) | 14 | ||
| A9 | VR237 (BN-WH) | 20 | 14630 | |
| A9 | VR237 (BN-WH) | 22 | 14A005 | |
| A10 | RR175 (YE-OG) | 20 | 14630 | |
| A10 | RR175 (YE-OG) | 22 | 14A005 | |
| A11 | CPL11 (GY-BN) | 14 | ||
| A12 | VPK02 (VT-WH) | 22 | ||
| A13 | RPK02 (GY-YE) | 22 | ||
| A14 | * | * | ||
| A15 | VDN13 (BN) | 22 | ||
| A16 | SBP26 (YE-RD) | 12 | ||
| A17 | VME10 (WH-VT) | 18 | ||
| A18 | RME10 (WH-OG) | 18 | ||
| A19 | VME11 (VT-OG) | 20 | ||
| A20 | RME11 (YE-OG) | 20 | ||
| A21 | GD383 (BK-WH) | 12 | ||
| B1 | * | * | ||
| B2 | * | * | ||
| B3 | * | * | ||
| B4 | * | * | ||
| B5 | * | * | ||
| B6 | * | * | ||
| B7 | * | * | ||
| B8 | * | * | ||
| B9 | * | * | ||
| B10 | * | * | ||
| B11 | * | * | ||
| B12 | * | * | ||
| B13 | * | * | ||
| B14 | * | * | ||
| B15 | * | * | ||
| B16 | * | * | ||
| B17 | * | * | ||
| B18 | * | * | ||
| B19 | * | * | ||
| B20 | * | * |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1559
Service Part Number:
FU2Z-14S411-RB
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
