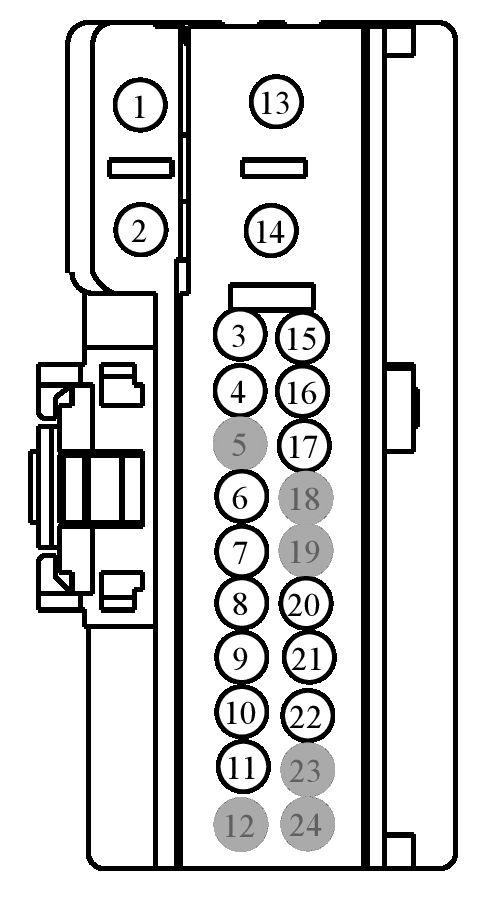

Connector End View (C652A) - PASSENGER DOOR MODULE (PDM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C652A |
PASSENGER DOOR MODULE (PDM) |
14630 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| DU5T-14474-SAB |
Not Available |
| 8U5T-14474-BA |
DU2Z-14474-CA |
0.64 |
| DU5T-14474-SAA |
DU2Z-14474-CA |
0.64 |
| 8U5T-14474-BB |
DU2Z-14474-CA |
0.64 |
| F8VB-14474-AA |
EU2Z-14474-AB |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP26 (YE-RD) |
12 |
FUSE - 26 OR CIRCUIT BREAKER |
F8VB-14474-AA |
| 2 |
GD383 (BK-WH) |
12 |
GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
F8VB-14474-AA |
| 3 |
CPL88 (VT) |
22 |
CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR PASSENGER |
8U5T-14474-BB |
| 4 |
CLS26 (BU-GY) |
26 |
CTRL MOD. - TURN LAMP RIGHT MIRROR + |
DU5T-14474-SAB |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
8U5T-14474-BB |
| 7 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
8U5T-14474-BA |
| 8 |
CPW20 (WH-OG) |
26 |
SWITCH - POWER WINDOW FRONT PASSENGER # UP |
DU5T-14474-SAB |
| 9 |
CPW19 (VT) |
26 |
SWITCH - POWER WINDOW FRONT PASSENGER # DOWN |
DU5T-14474-SAB |
| 10 |
CPL16 (YE-GN) |
26 |
SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK |
DU5T-14474-SAA |
| 11 |
VPW45 (GN-WH) |
22 |
CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 2 (UP IF LEAD) |
8U5T-14474-BB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CPW41 (GY-YE) |
12 |
CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN (IF POSITIVE) |
F8VB-14474-AA |
| 14 |
CPW40 (WH) |
12 |
CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP (IF POSITIVE) |
F8VB-14474-AA |
| 15 |
CPL78 (VT-WH) |
22 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION |
8U5T-14474-BB |
| 16 |
LPW42 (VT-GY) |
22 |
CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS |
8U5T-14474-BA |
| 17 |
RPW05 (GN-BN) |
22 |
CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN |
8U5T-14474-BA |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
CPL15 (BU-GY) |
26 |
SWITCH - TRIM DOOR LOCK PASSENGER # LOCK |
DU5T-14474-SAA |
| 21 |
VPW44 (BU-OG) |
22 |
CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 1 (DOWN IF LEAD) |
8U5T-14474-BA |
| 22 |
RPW43 (YE-GN) |
22 |
CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS |
8U5T-14474-BA |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
* |
* |
Not Used |
N/A |
