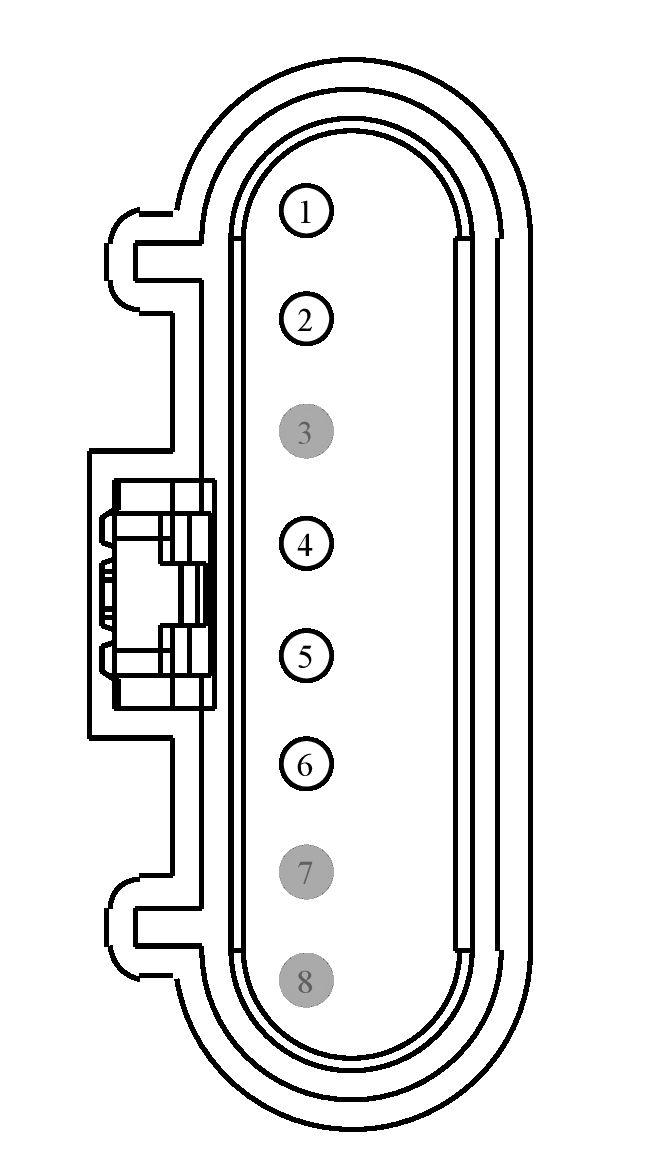

Connector End View (C609) - PASSENGER DOOR LATCH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C609 | PASSENGER DOOR LATCH | BK | 14630 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 98BG-14474-AKA | Not Available | |
| 97BG-14474-ADA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPL13 (BN-GN) | 14 | CTRL MOD. - DOOR LOCK # ALL UNLOCK | 98BG-14474-AKA | ||||
| 2 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | 98BG-14474-AKA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | RPL62 (GY) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER | 97BG-14474-ADA | ||||
| 5 | CPL35 (BU) | 22 | SWITCH - LATCH PASSENGER OR RIGHT FRONT # UNLOCK | 97BG-14474-ADA | ||||
| 6 | CPL31 (WH) | 22 | SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR | 97BG-14474-ADA | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1366
Service Part Number:
3U2Z-14S411-MBB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Module - Liftgate
- Switch - Door Ajar / Interior Lamp
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Sliding Door Contact
