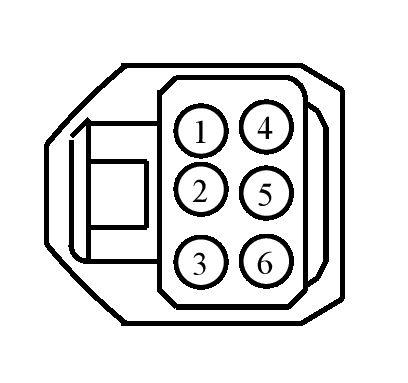

Connector End View (C608) - PASSENGER DOOR WINDOW REGULATOR MOTOR

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C608	PASSENGER DOOR WINDOW REGULATOR MOTOR	BK	14630	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BFA	DU2Z-14474-FA	2.8
97BG-14474-BDA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW41 (GY-YE)	12	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN (IF POSITIVE)	97BG-14474-BFA
2	VPW44 (BU-OG)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	97BG-14474-BDA
3	LPW42 (VT-GY)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS	97BG-14474-BDA
4	CPW40 (WH)	12	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP (IF POSITIVE)	97BG-14474-BFA
5	VPW45 (GN-WH)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 2 (UP IF LEAD)	97BG-14474-BDA
6	RPW43 (YE-GN)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS	97BG-14474-BDA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Motor - Power Window - LH - Front
Motor - Power Window - LH - Rear
Motor - Power Window - RH - Front
Motor - Power Window - RH - Rear
