Connector End View (C604) - PASSENGER DOOR WINDOW CONTROL SWITCH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C604	PASSENGER DOOR WINDOW CONTROL SWITCH	GY	14630	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-NA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

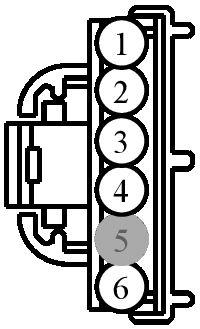

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	9U5T-14474-LA
2	CPW20 (WH-OG)	26	SWITCH - POWER WINDOW FRONT PASSENGER # UP	9U5T-14474-NA
3	CPW19 (VT)	26	SWITCH - POWER WINDOW FRONT PASSENGER # DOWN	9U5T-14474-NA
4	CPL78 (VT-WH)	22	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	9U5T-14474-LA
5	*	*	Not Used	N/A
6	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	9U5T-14474-LA

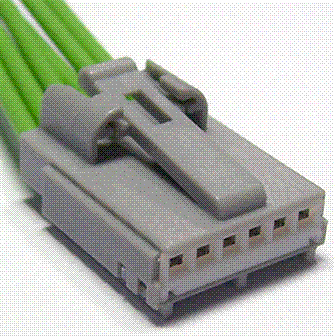

Available Pigtail Kits

Pigtail Kit Part Number WPT-1028

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-APA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Power Window - LH - Rear
Switch - Power Window - Passenger (Front)
Switch - Power Window - RH - Rear
