Connector End View (C555) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C555 | INLINE | 1463114A005 | See Below | |||||

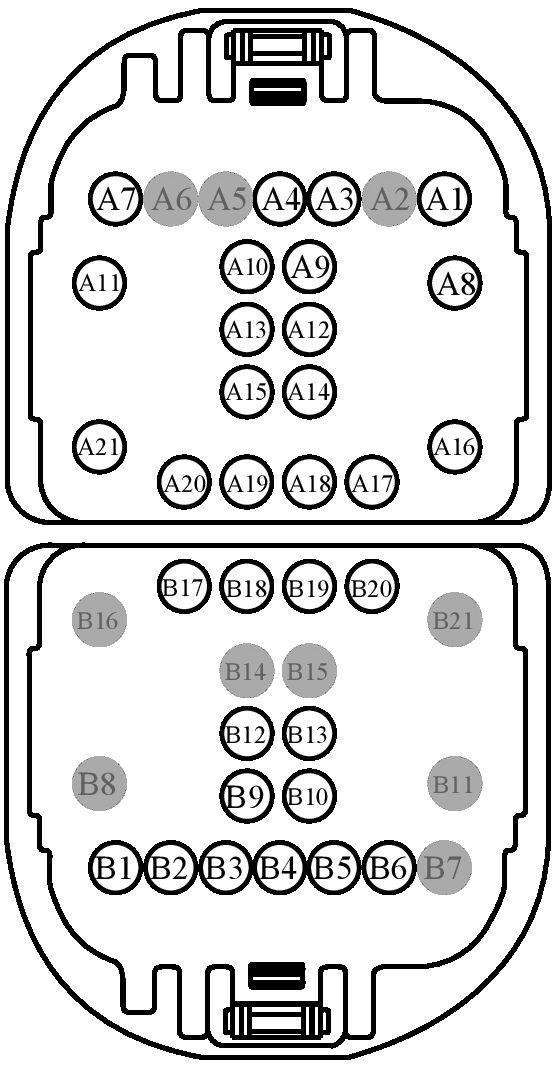

MALE
Harness
14631

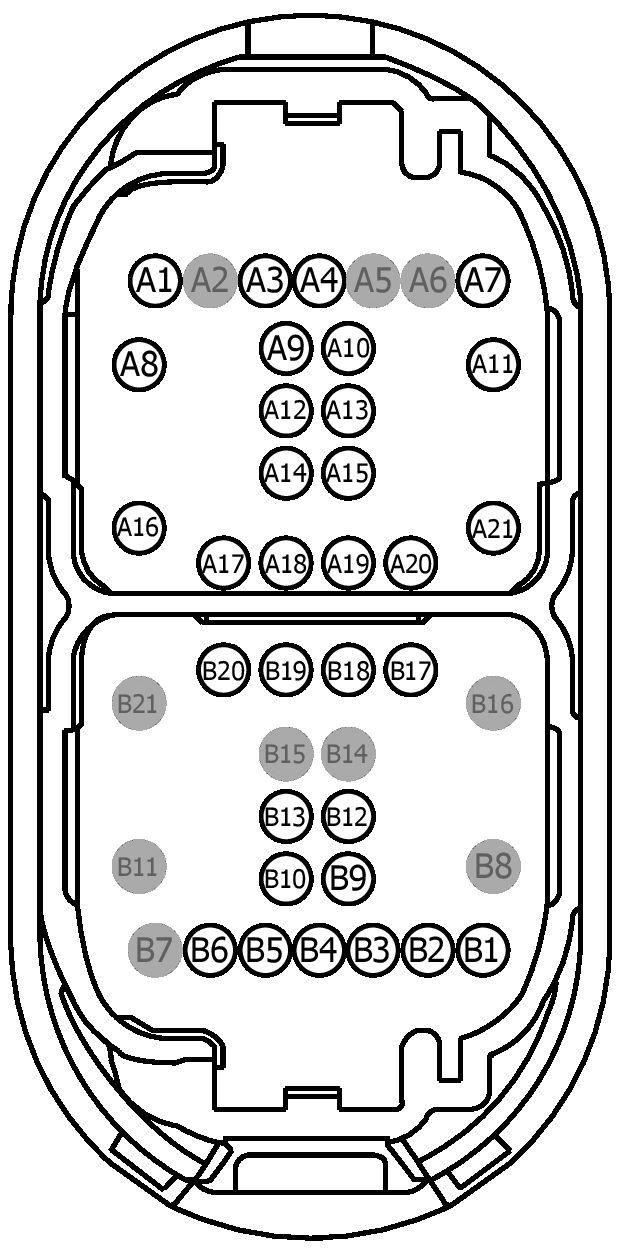

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| A1 | CPL26 (GN-VT) | 22 | ||
| A2 | * | * | ||
| A3 | VDB06 (GY-OG) | 22 | 14631 | |
| A3 | VDB06 (GY-OG) | 26 | 14A005 | |
| A4 | VDB07 (VT-OG) | 22 | 14631 | |
| A4 | VDB07 (VT-OG) | 26 | 14A005 | |
| A5 | * | * | ||
| A6 | * | * | ||
| A7 | CBP23 (BN-YE) | 20 | 14631 | |
| A7 | CBP23 (BN-YE) | 22 | 14A005 | |
| A8 | CPL51 (BU-GN) | 14 | ||
| A9 | VR236 (BU-OG) | 22 | ||
| A10 | RR174 (WH-OG) | 22 | ||
| A11 | CPL11 (GY-BN) | 14 | ||
| A12 | CPW18 (GY) | 26 | 14A005 | |
| A12 | CPW18 (GY-VT) | 22 | 14631 | |
| A13 | CPW17 (BN) | 26 | 14A005 | |
| A13 | CPW17 (BN-GN) | 22 | 14631 | |
| A14 | CPW16 (BU-OG) | 22 | ||
| A15 | CPW15 (YE) | 22 | ||
| A16 | SBP25 (RD) | 12 | ||
| A17 | VME07 (WH) | 18 | ||
| A18 | RME07 (WH-BN) | 18 | ||
| A19 | VME08 (GN-OG) | 20 | ||
| A20 | RME08 (GY-OG) | 20 | ||
| A21 | GD382 (BK-GY) | 12 | ||
| B1 | VDN13 (BN) | 22 | ||
| B2 | CBX07 (GN-RD) | 22 | ||
| B3 | SBP10 (YE-RD) | 22 | 14631 | |
| B3 | SBP10 (YE-RD) | 22 | 14A005 | |
| B4 | RPK39 (VT-OG) | 22 | ||
| B5 | CPW14 (VT-WH) | 22 | ||
| B6 | VPK39 (GN-VT) | 22 | ||
| B7 | * | * | ||
| B8 | * | * | ||
| B9 | LRD12 (BU-GY) | 22 | ||
| B10 | RRD12 (BN) | 22 | ||
| B11 | * | * | ||
| B12 | VPK01 (BN-YE) | 22 | ||
| B13 | RPK01 (WH-GN) | 22 | ||
| B14 | * | * | ||
| B15 | * | * | ||
| B16 | * | * | ||
| B17 | CPK28 (WH-GN) | 22 | ||
| B18 | CPK29 (GY-BU) | 22 | ||
| B19 | CPK30 (VT-GN) | 22 | ||
| B20 | CPK31 (YE-GN) | 22 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1482
Service Part Number:
GU2Z-14S411-GB
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
