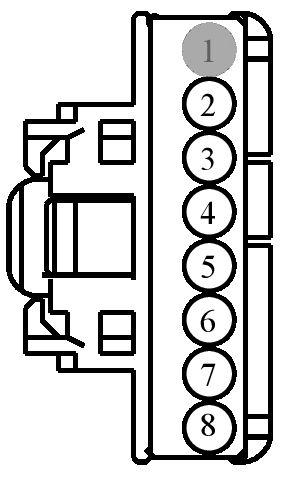

Connector End View (C552) - FRONT DOOR LOCK SWITCH LH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C552	FRONT DOOR LOCK SWITCH LH	BK	14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-NA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	CPL77 (BU)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION	9U5T-14474-NA
3	CPS17 (BU-OG)	26	SWITCH - MEMORY DRIVER P3	9U5T-14474-NA
4	CPS16 (YE)	26	SWITCH - MEMORY DRIVER P2	9U5T-14474-NA
5	CPS15 (VT-WH)	26	SWITCH - MEMORY DRIVER P1	9U5T-14474-NA
6	RPW03 (BU-GN)	22	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN	9U5T-14474-LA
7	CPL42 (GY)	26	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	9U5T-14474-NA
8	CPL43 (VT)	26	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK	9U5T-14474-NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1219

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DAAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Ambient Lighting Dimmer
Switch - Door Lock (LH)
Switch - Message Center
Switch - Moon Roof/Sun Roof
Switch - Seat Memory
