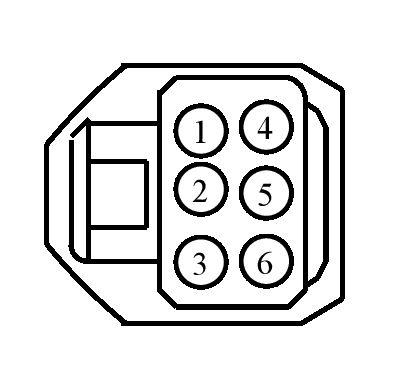

Connector End View (C518) - DRIVER DOOR WINDOW REGULATOR MOTOR

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C518	DRIVER DOOR WINDOW REGULATOR MOTOR	BK	14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW35 (GN)	12	CTRL MOD. - WINDOW MOTOR DRIVER # DOWN (IF POSITIVE)	97BG-14474-BFA
2	VPW38 (YE-BU)	22	CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	97BG-14474-BDA
3	LPW36 (WH-BN)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS	97BG-14474-BDA
4	CPW34 (BU)	12	CTRL MOD. - WINDOW MOTOR DRIVER # UP (IF POSITIVE)	97BG-14474-BFA
5	VPW39 (BU-WH)	22	CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 2 (UP IF LEAD)	97BG-14474-BDA
6	RPW37 (VT-GN)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS	97BG-14474-BDA

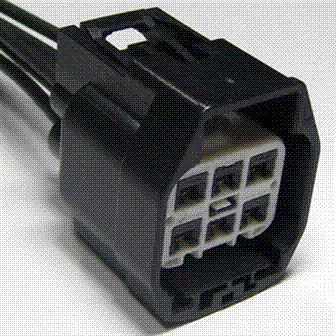

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Motor - Power Window - LH - Front
Motor - Power Window - LH - Rear
Motor - Power Window - RH - Front
Motor - Power Window - RH - Rear
