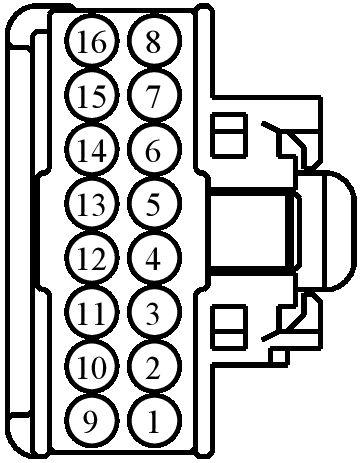

Connector End View (C516) - EXTERIOR MIRROR LH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C516	EXTERIOR MIRROR LH	BK	14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-NA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RRD12 (BN)	22	CTRL MOD. - ELECTROCHROMIC MIRROR -	9U5T-14474-LA
2	CRD13 (GN-VT)	20	CTRL MOD. - HEATER MIRROR LEFT	9U5T-14474-MA
3	CLS22 (GN)	26	CTRL MOD. - TURN LAMP LEFT MIRROR +	9U5T-14474-NA
4	CLN31 (VT)	26	CTRL MOD. - PUDDLE LAMP LEFT	9U5T-14474-NA
5	CPM29 (GN)	22	CTRL MOD. - LEFT MIRROR UP	9U5T-14474-LA
6	CPM39 (GN-VT)	20	CTRL MOD. - LEFT MIRROR FOLD OUT (DRV)	9U5T-14474-MA
7	LPM30 (GY)	26	CTRL MOD. - SENSORS MIRROR POSITION (LEFT) +	9U5T-14474-NA
8	CRB06 (GN-WH)	26	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER +	9U5T-14474-NA
9	RRB06 (GY)	26	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER -	9U5T-14474-NA
10	CPM04 (VT-BN)	20	CTRL MOD. - LEFT MIRROR FOLD IN	9U5T-14474-MA
11	RPM05 (VT-GN)	22	CTRL MOD. - LEFT MIRROR RETURN	9U5T-14474-LA
12	VPM36 (BN-YE)	26	SENSOR - LEFT MIRROR POSITION # VERTICAL	9U5T-14474-NA
13	VPM35 (YE-BU)	26	SENSOR - LEFT MIRROR POSITION # HORIZONTAL	9U5T-14474-NA
14	CPM27 (GY-BU)	22	CTRL MOD. - LEFT MIRROR LEFT	9U5T-14474-LA
15	LRD12 (BU-GY)	22	CTRL MOD. - ELECTROCHROMIC MIRROR +	9U5T-14474-LA
16	GD382 (BK-GY)	20	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	9U5T-14474-MA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1152

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AJD

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Mirror - Sideview
Mirror - Vanity
Overhead Console -Inline (Female)
Switch - Multifunction
