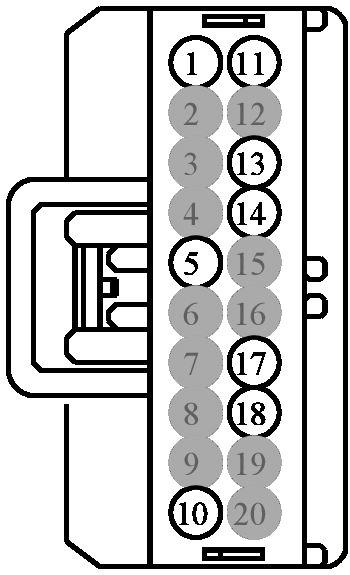

Connector End View (C504) - DRIVER DOOR WINDOW CONTROL SWITCH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C504 |
DRIVER DOOR WINDOW CONTROL SWITCH |
BK |
14631 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VDN09 (WH-GN) |
22 |
CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE [OBSOLETE - REPLACED BY VPLA4] |
9U5T-14474-LA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
CPW14 (VT-WH) |
22 |
SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE) |
9U5T-14474-LA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
CBP23 (BN-YE) |
20 |
FUSE - 23 OR CIRCUIT BREAKER |
9U5T-14474-MA |
| 11 |
RPW03 (BU-GN) |
22 |
CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN |
9U5T-14474-LA |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CPW18 (GY-VT) |
22 |
SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP |
9U5T-14474-LA |
| 14 |
CPW17 (BN-GN) |
22 |
SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN |
9U5T-14474-LA |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
CPW15 (YE) |
22 |
SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN |
9U5T-14474-LA |
| 18 |
CPW16 (BU-OG) |
22 |
SWITCH - POWER WINDOW DRIVER # REAR LEFT UP |
9U5T-14474-LA |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
* |
* |
Not Used |
N/A |
