Connector End View (C1646) - BATTERY CURRENT SENSOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1646 | BATTERY CURRENT SENSOR | BK | 14A280 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-RA | Not Available |

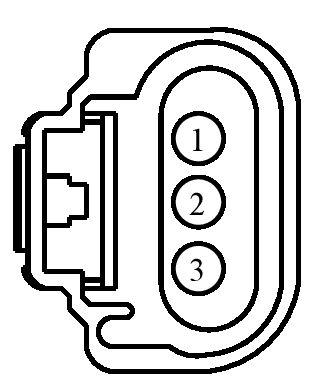

| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LDC59 (BU-WH) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + | 7C3T-14474-RA | ||||
| 2 | RDC59 (GY-BN) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - | 7C3T-14474-RA | ||||
| 3 | SDC57 (BU-OG) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR | 7C3T-14474-RA | ||||

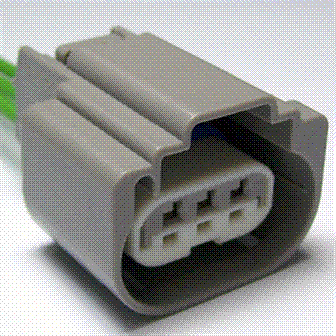

Available Pigtail Kits
Pigtail Kit Part Number WPT-1499
Service Part Number:
3U2Z-14S411-FKAF
Gauge:
16
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
- Sensor - Battery Current
Pigtail Kit Part Number WPT-1236
Service Part Number:
3U2Z-14S411-FKAE
Gauge:
16
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
