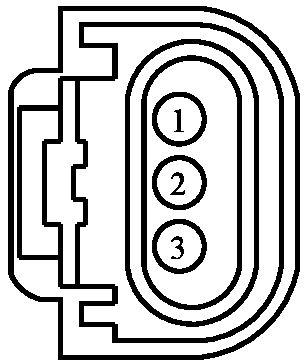

Connector End View (C1645) - GENERATOR CURRENT SENSOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1645 | GENERATOR CURRENT SENSOR | GY | 14A280 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 2S65-14474-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | 2S65-14474-AA | ||||
| 2 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | 2S65-14474-AA | ||||
| 3 | VDC61 (VT-GN) | 20 | SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR | 2S65-14474-AA | ||||

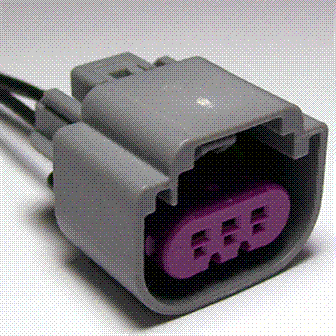

Available Pigtail Kits
Pigtail Kit Part Number WPT-1413
Service Part Number:
EU2Z-14S411-UA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses:
- Sensor - Battery Current
- Sensor - Brake Vacuum
- Sensor - Fuel Tank Pressure Transducer
