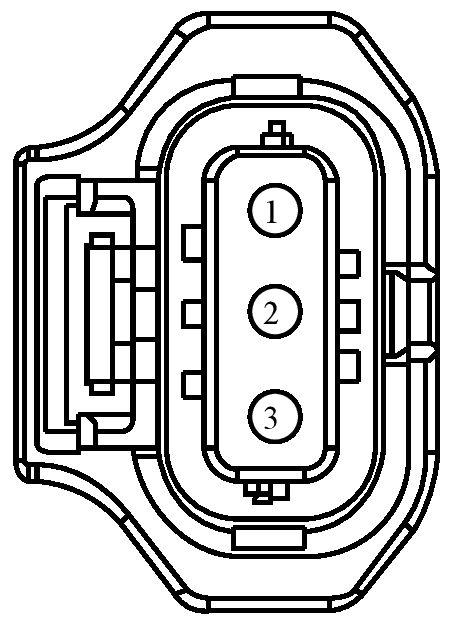

Connector End View (C1642) - ENGINE OIL PRESSURE (EOP) SENSOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1642 | ENGINE OIL PRESSURE (EOP) SENSOR | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-SB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC14 (BN-YE) | 18 | SENSOR - LOW LEVEL ENGINE OIL | EU5T-14474-SB | ||||
| 2 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | EU5T-14474-SB | ||||
| 3 | LE459 (GY) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3) | EU5T-14474-SB | ||||

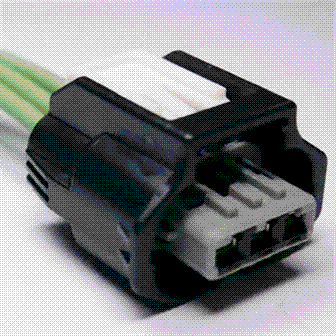

Available Pigtail Kits
Pigtail Kit Part Number WPT-1531
Service Part Number:
JU2Z-14S411-XA
Gauge:
14
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Sensor - Oil Pressure
