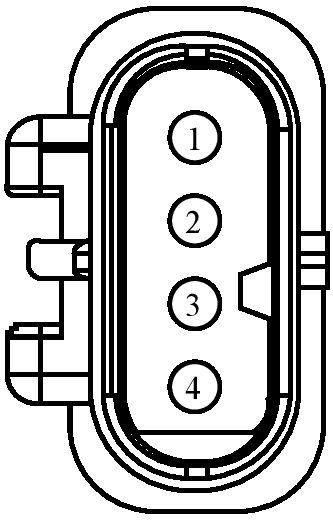

Connector End View (C1632) - HEATED OXYGEN SENSOR (HO2S) #12

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1632	HEATED OXYGEN SENSOR (HO2S) #12	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14421-NA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	EU5T-14421-NA
2	CE233 (WH-OG)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)	EU5T-14421-NA
3	RE731 (WH)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND)	EU5T-14421-NA
4	VE731 (YE-GN)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	EU5T-14421-NA

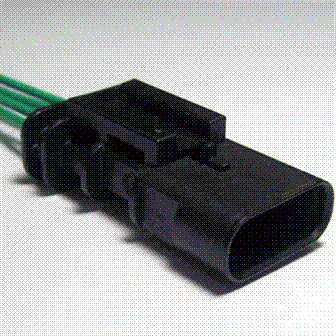

Available Pigtail Kits

Pigtail Kit Part Number WPT-1381

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-EA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Catalyst Monitor
