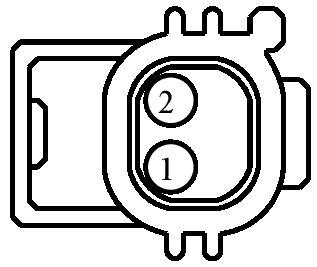

Connector End View (C1614) - KNOCK SENSOR 1 (KS1)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1614 | KNOCK SENSOR 1 (KS1) | DK GY | 14B485 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AHA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RE323 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - | 97BG-14421-AHA | ||||
| 2 | VE801 (VT-OG) | 20 | SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] | 97BG-14421-AHA | ||||

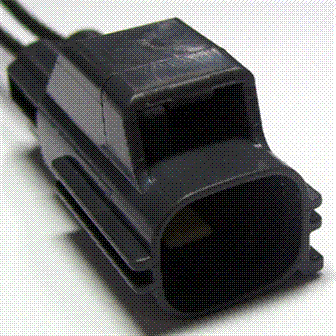

Available Pigtail Kits
Pigtail Kit Part Number WPT-987
Service Part Number:
3U2Z-14S411-CZAB
Gauge:
16
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Sensor - Cylinder Head Temperature
- Sensor - Knock
