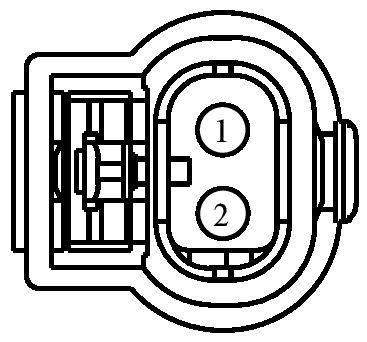

Connector End View (C1610) - VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 1 (VCT21)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1610 | VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 1 (VCT21) | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-ACA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | 9U5T-14474-ACA | ||||
| 2 | CE442 (YE-GY) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3 | 9U5T-14474-ACA | ||||

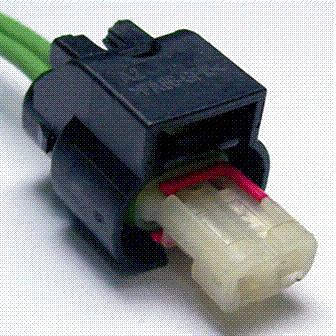

Available Pigtail Kits
Pigtail Kit Part Number WPT-1250
Service Part Number:
CU2Z-14S411-CA
Gauge:
18
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Solenoid - Engine Variable Timing
