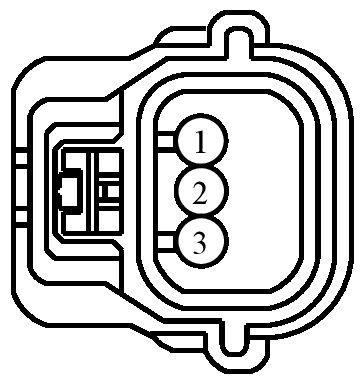

Connector End View (C1608) - FRONT ACTIVE PARK ASSIST SENSOR RH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1608 | FRONT ACTIVE PARK ASSIST SENSOR RH | 15K867 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LMP06 (VT-GY) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT + | 9U5T-14474-LA | ||||
| 2 | VMP21 (WH-BN) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | 9U5T-14474-LA | ||||
| 3 | RMP06 (YE-OG) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT - | 9U5T-14474-LA | ||||
Available Pigtail Kits

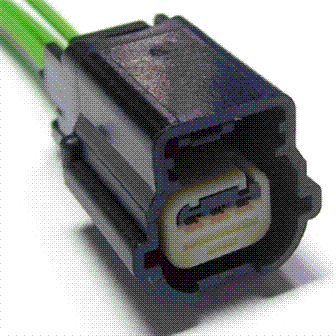

Pigtail Kit Part Number WPT-1394
Service Part Number:
AU2Z-14S411-AFB
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Sensor - Front Park Aid (FPA)

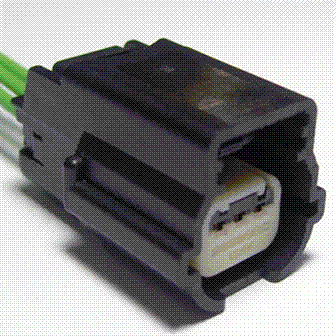

Pigtail Kit Part Number WPT-1095
Service Part Number:
AU2Z-14S411-AFA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Sensor - Front Park Aid (FPA)
