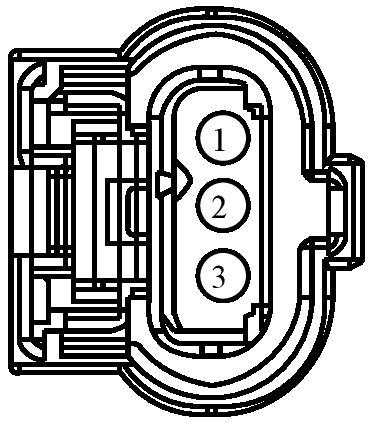

Connector End View (C1606) - IGNITION COIL-ON-PLUG 6

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1606	IGNITION COIL-ON-PLUG 6	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE308 (VT-BN)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F)	EU5T-14474-GAB
2	GD104 (BK-GN)	16	GROUND - COWL TOP RIGHT #3	EU5T-14474-GAB
3	CBK04 (VT)	16	FUSE - 4 OR CIRCUIT BREAKER (VPWR 4)	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Coil - Ignition
Sensor - Fuel Low Pressure
