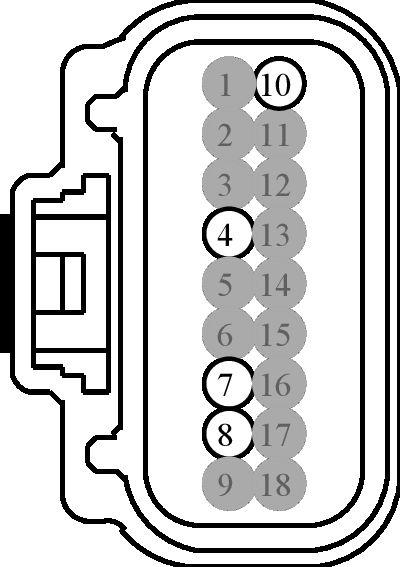

Connector End View (C1582) - CRUISE CONTROL MODULE (C-CM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1582	CRUISE CONTROL MODULE (C-CM)	12A581			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT	9U5T-14474-MA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-LA
8	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-LA
9	*	*	Not Used	N/A
10	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	9U5T-14474-MA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A

Available Pigtail Kits

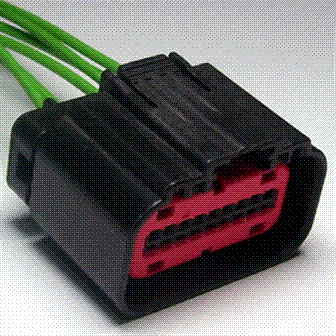

Pigtail Kit Part Number WPT-1342

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Adaptive Cruise Control

Pigtail Kit Part Number WPT-1411

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Adaptive Cruise Control
Module - Occupant Classification
Module - Reverse Park Aid (RPA)
